Teradek Prism Mobile

Teradek Prism Mobile

Stream On The Go In 4K HDR
Introducing the most resilient bonded cellular encoder for live coverage from the field.

The Bonded Cellular Solution
The lowest-SWaP, LTE-enabled camera-back video encoder in its class. Prism Mobile allows you to reliably stream 4K HDR video from the most challenging locations for live coverage on the go.

Portable Connectivity
Mission-Critical Network Bonding
Get exceptional worldwide internet connectivity virtually anywhere you go with two internal high-throughput Node II modems uniquely designed for video applications. For maximum redundancy, Prism Mobile can bond* up to nine network connections across Cellphone Hotspots (4x), Ethernet (2x), and Cellular Modems (3x) – ensuring your stream never misses a beat.

Camera-Back On-The-Go Design
Hardware Overview

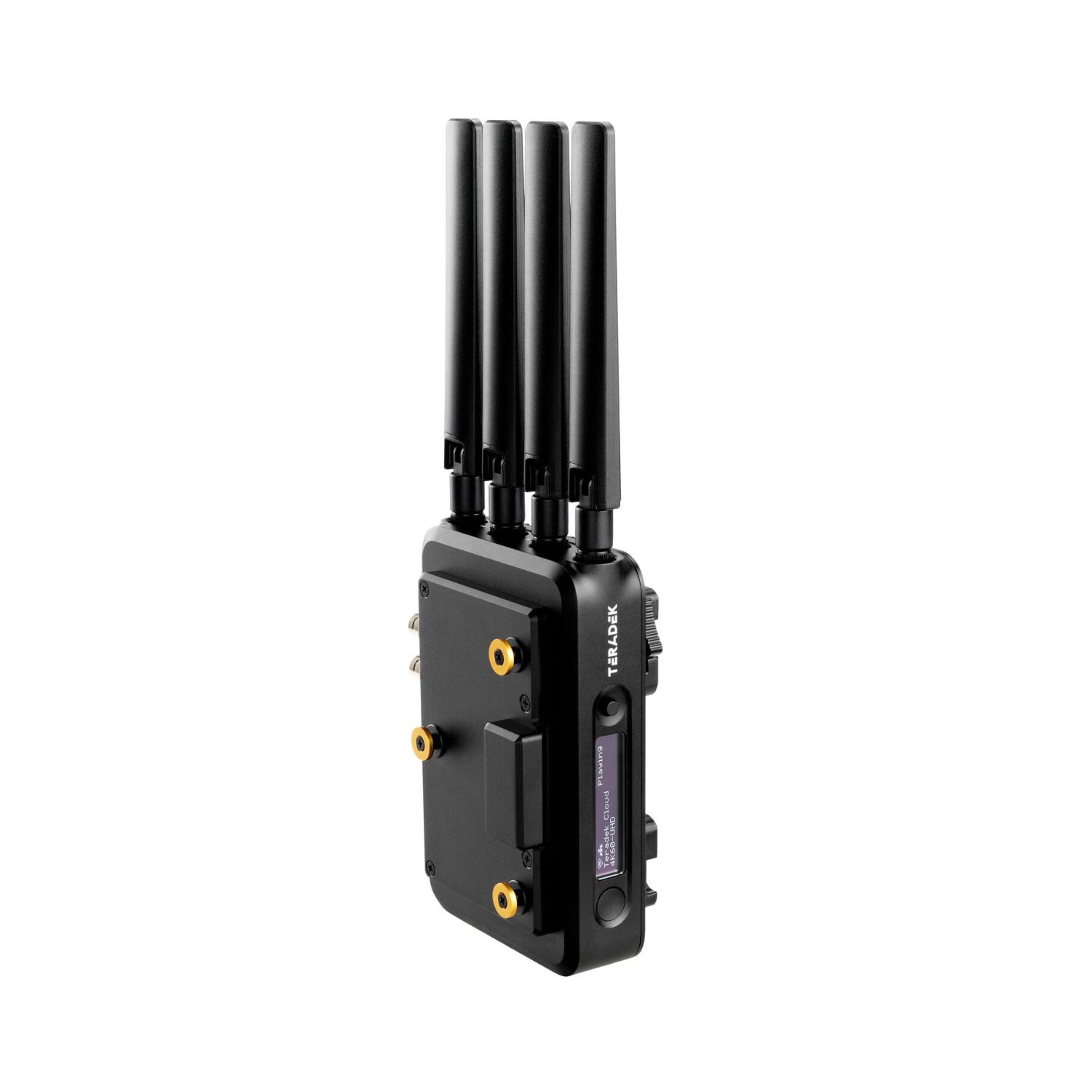

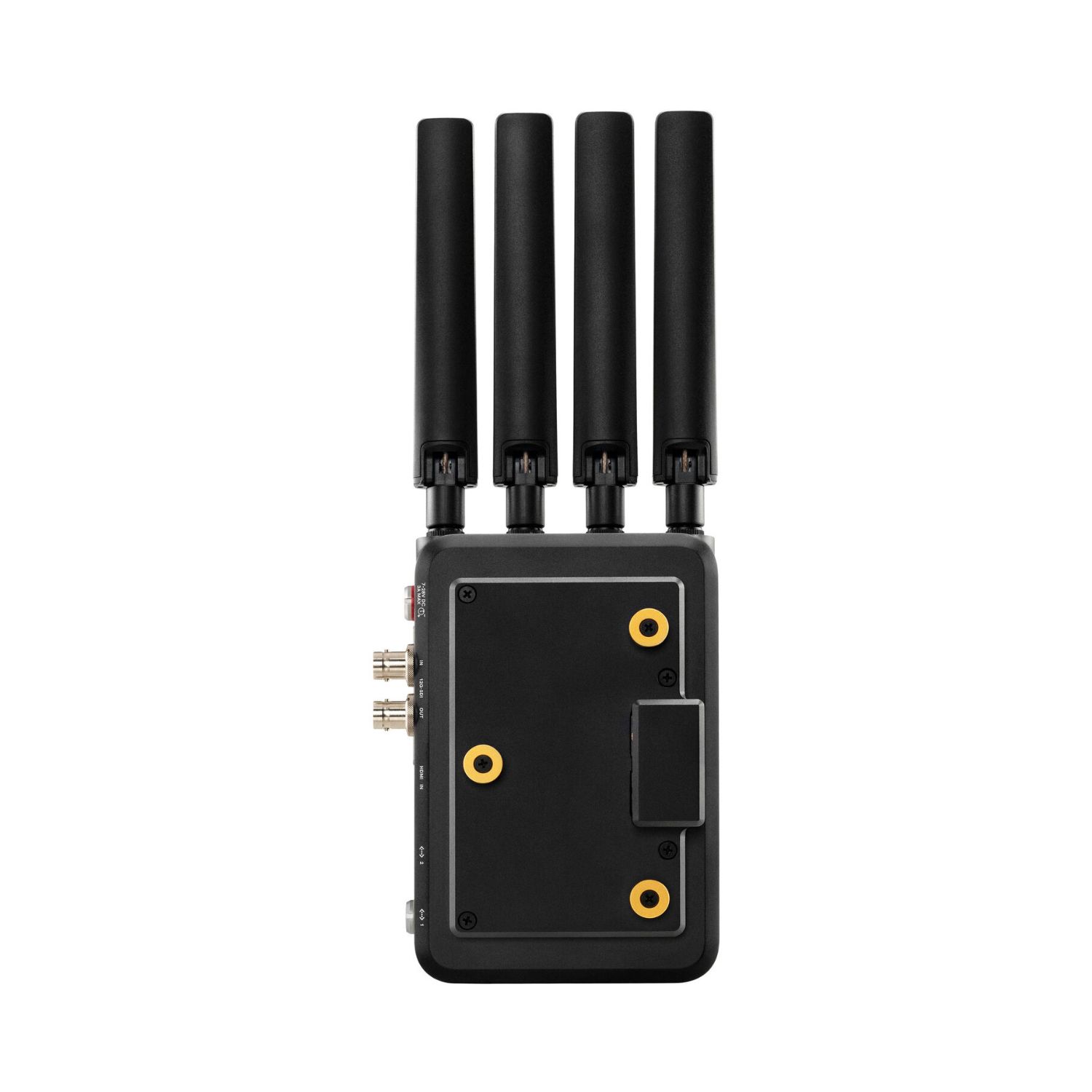

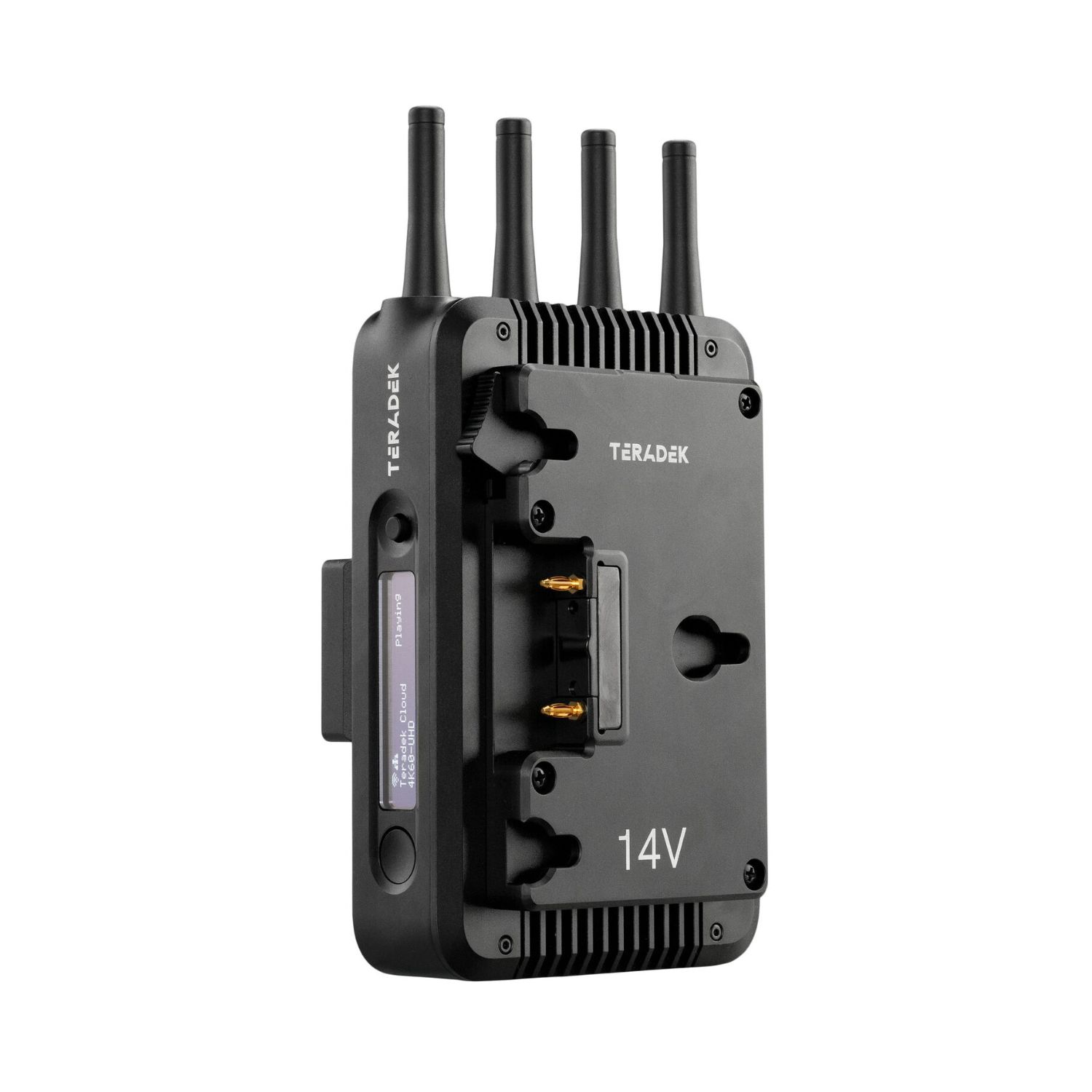

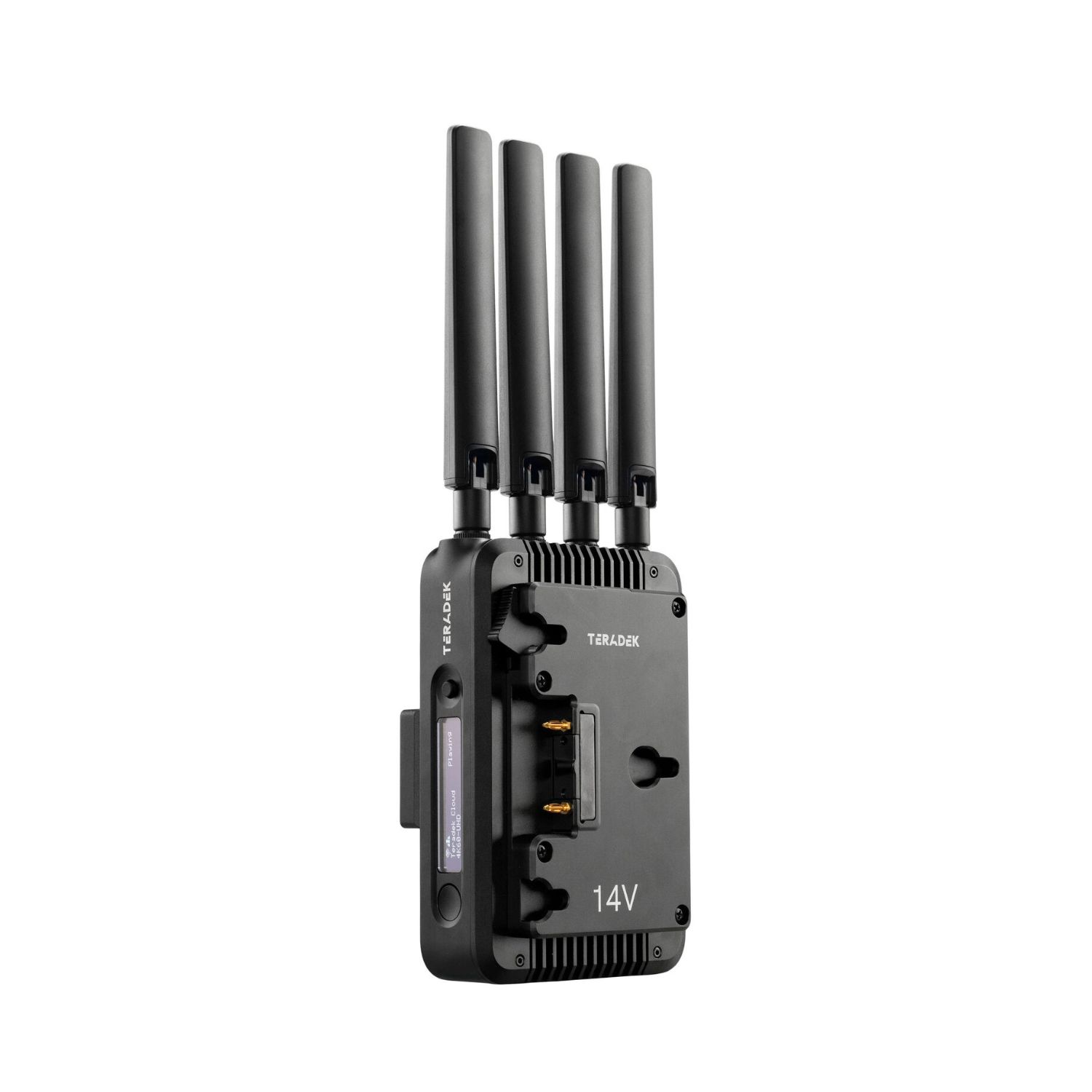

Compact, lightweight, and power-efficient: the definition of Low-SWaP. Prism Mobile mounts to the Gold / V-mount battery plate on your ENG camcorder or professional camera rig. And for studio or fixed workflows, Prism Mobile is available as a desktop solution.

Internal Node Modems
Node II is our custom high-performance 4G / LTE global modem that provides the critical connectivity required for professional on-the-go streaming.

External Node Capability
Where additional coverage is needed in more challenging environments, Prism Mobile is capable of adding an external Node II modem.

Configure from Your Phone
With the Prism app for iOS and Android, you can manage your Prism devices right from your phone or tablet. Fire up the app to configure your encoder, monitor and manage your feed, and review streaming stats in real-time. Lacking internet signal? The Prism app allows you to share your phone’s 5G or LTE bandwidth with your Prism device.

Do More With The Cloud
Achieve Prism’s true potential with Core, Teradek’s streaming media orchestration platform. Core allows you to securely monitor, manage, route, distribute, and archive your live video feeds from anywhere in the world.

Specifications

• VIDEO
  Video Inputs
  1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
  1x HDMI 2.0 Type-A receptacle
  Video Outputs
  1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
  Supported Resolutions
  4K DCI p23.98/24/25/29.97/30/50/59.94/60
  4K UHD UHD p23.98/24/25/29.97/30/50/59.94/60
  1080p 23.98/24/25/29.97/30/50/59.94/60
  1080i 50/59.94/60
  1080PsF 23/24/25/29/30
  720p 50/59.94/60
  576i
  480i
• VIDEO PROCESSING
  Supported Video Bitrate
  250 Kbps to 85 Mbps
  Video Format Conversion Support
  Built in video scaler and deinterlacer
  HDR Support
  Yes (Rec.2100)
  Color Correction
  CDL/1024 1D LUT (supports 10-bit color)
  33x33x33 3D LUT (supports 10-bit color)
  Video Compression/Decompression
  H.264, Advanced Video Coding (AVC)
  ISO MPEG-4 Part 10 / ITU H.264: Baseline, Main, High
  H.265, High Efficiency Video Coding (HEVC)
  ISO MPEG-H Part 2 / ITU H.265: Main
  Bonding
  Support for up to 9 network inputs
  4x Cellular phones
  2x Internal Node modems
  1x External modem
  2x Ethernet networks
  Recording
  Supported File Type
  MP4, TS wrapper
  Supported Media
  SD Card, USB, NFS
• AUDIO
  Audio Compression
  AAC-LC
  Audio Input
  Embedded over SDI and HDMI, 3.5mm TRRS Stereo Line Level Analog or
  Microphone in, adjustable gain
  Audio Output
  3.5mm TRRS Stereo Headphone output, adjustable gain
  Audio Support
  Stereo, 5.1 surround sound
  Audio Sample Rate
  48kHz
  Audio Bitrate
  32kbps to 512kbps
• PROTOCOL SUPPORT
  Supported Video Transport Protocols
  Secure Reliable Transport (SRT), RTMP/RTMPS, MPEG-TS (UDP, TCP, TCP Server,
  Multicast), CDNs, RTSP/RTP
  Teradek Bonding Protocol
  Network Protocols
  TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
  Remote Management
  Teradek Core
• PHYSICAL ATTRIBUTES
  Dimensions
  5.9in. (W) x 3.9in. (D) x 1.3in. (H)
  [162 x 92 x 35mm]
  Weight
  23.4oz [664g] without plates; 30.5oz (864g) with plates
  Construction
  Milled aluminum
  Mounting Options
  Camera-back, Gold, Gold 26V and V-Lock mounts
  Can be mounted using the 1/4″ 20 mounting holes

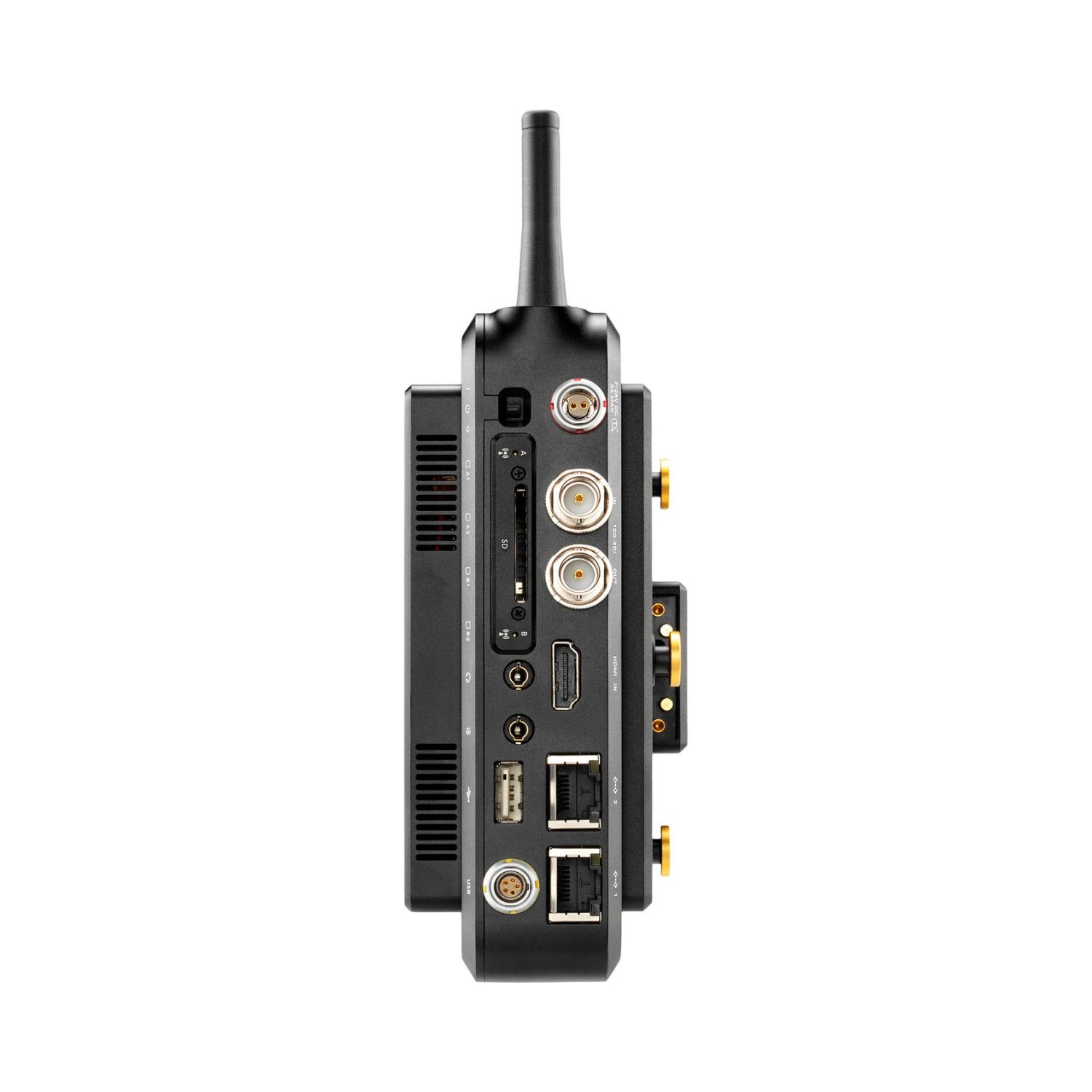

• INTERFACES
  Configuration Interface
  Feature-rich Web UI for local device management, configuration, and control,

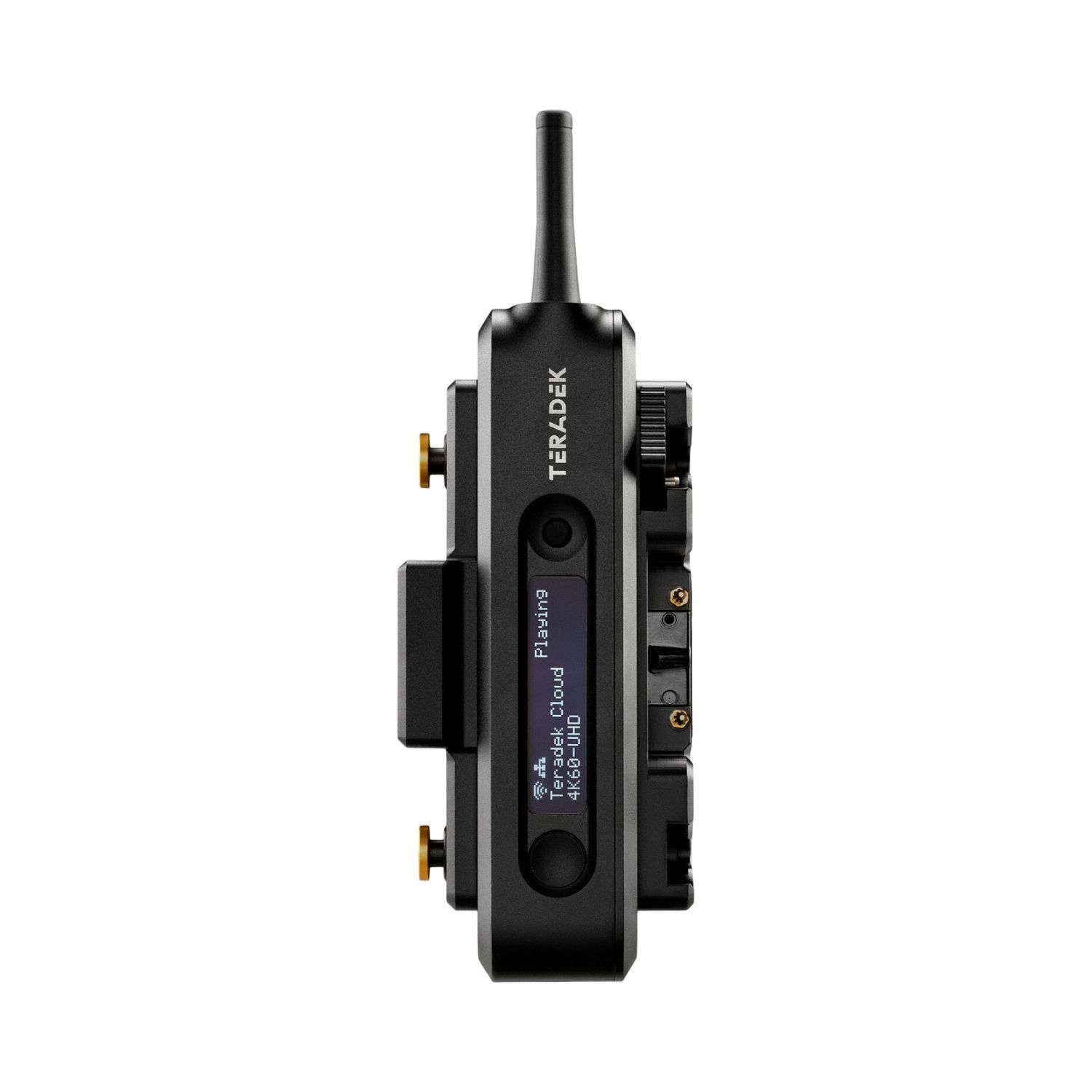

  Intuitive iOS configuration app (Prism App), OLED Status Display w/ Nav control buttons,
  Core for cloud based device management
  Cellular
  2x Internal Node II modems with dual switchable SIM slots,
  Supports up to 4 cellular SIM cards
  USB Interface Functionality
  1x Powered 5-pin circular locking connector with Node II LTE/4G/3G Modem support
  1x Powered USB-A with external storage support
  Ethernet
  2x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)
  Wireless
  WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MiMo
• POWER
  Power Input
  2-pin circular locking connector, Gold, Gold 26V and V-Lock Battery Plates
  Voltage
  6-28V DC
  Power Consumption
  20W Nominal, 36W Max
