Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Set

Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Set

Unleash the Power of 4K Video Transmission

Experience Seamless and High-Quality Video Transmission The Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Set brings your video production to new heights with its exceptional 4Kp30 video transmission capabilities. Immerse yourself in the world of ultra-high-definition video, delivering stunning clarity and lifelike visuals. Whether you’re a professional filmmaker, content creator, or live streamer, this wireless system offers real-time video transmission with zero image delay, ensuring your footage is captured and delivered without any compromise in quality.

Enhanced Range, Stability, and Compatibility

Extended Reach for Unrestricted Creativity With an impressive line-of-sight range of up to 750ft (228m), the Bolt 4K LT 750 empowers you to explore new horizons and capture breathtaking shots from a distance. Say goodbye to the limitations of cables and embrace the freedom to move and frame your shots with precision. Whether you’re shooting in a studio or on-location, this wireless transmitter and receiver set provides the flexibility and reliability you need to bring your creative vision to life.

Seamless Integration and Versatility The Bolt 4K LT 750 is designed to seamlessly integrate with your existing workflow. It is compatible with all Bolt 4K series TX/RX devices, allowing you to expand your setup effortlessly. Whether you’re using HDMI or 3G-SDI inputs and outputs, this versatile system ensures compatibility with a wide range of cameras, monitors, and other production equipment. It’s time to streamline your production process and enhance your workflow efficiency.

Advanced Features for Unparalleled Performance

Uncompromising HDR and Color Accuracy Achieve true-to-life colors and stunning HDR visuals with the Bolt 4K LT 750. Supporting Rec 2020 HDR in 10-bit 4:2:2 color gamut, this wireless system enables you to monitor and capture footage with balanced highlight and lowlight regions. Experience the full dynamic range of your content and ensure accurate color reproduction for a truly immersive viewing experience.

Optimized Performance and Seamless Connectivity The Bolt 4K LT 750 sets a new standard for wireless performance. With upgraded hardware and improved signal transmission, you can expect a more stable and reliable connection, even in high-traffic environments with excessive interference. The faster reconnection times and automatic signal quality switching ensure uninterrupted video transmission, giving you peace of mind during critical productions.

Expand Your Viewing Options Unlock the potential of multi-angle monitoring with the ability to link up to 6 RX receivers to a single TX transmitter. This feature allows multiple team members or clients to view the live feed simultaneously, providing a collaborative and efficient production environment. With the Bolt 4K LT 750, you can take your production value to the next level and deliver exceptional results.

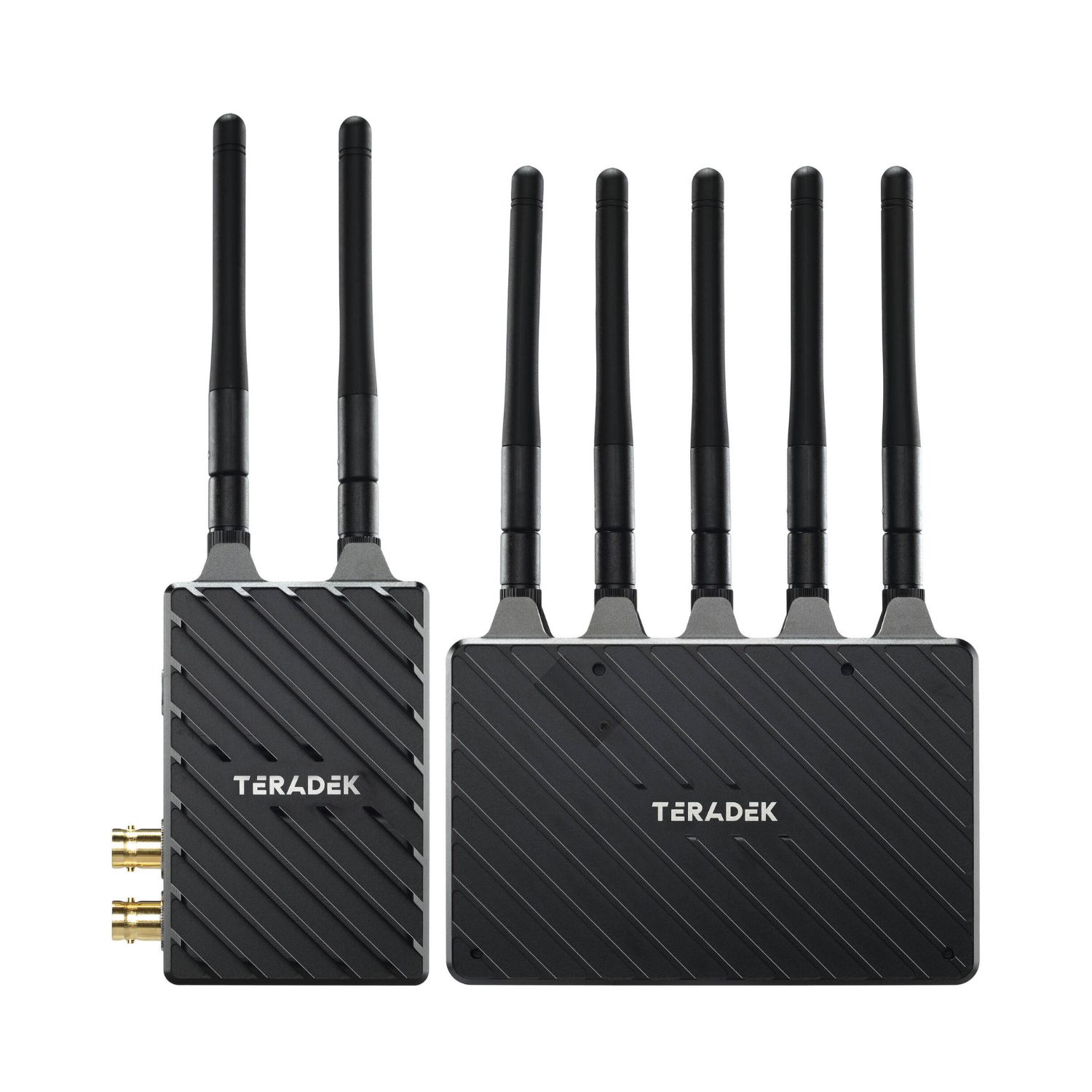

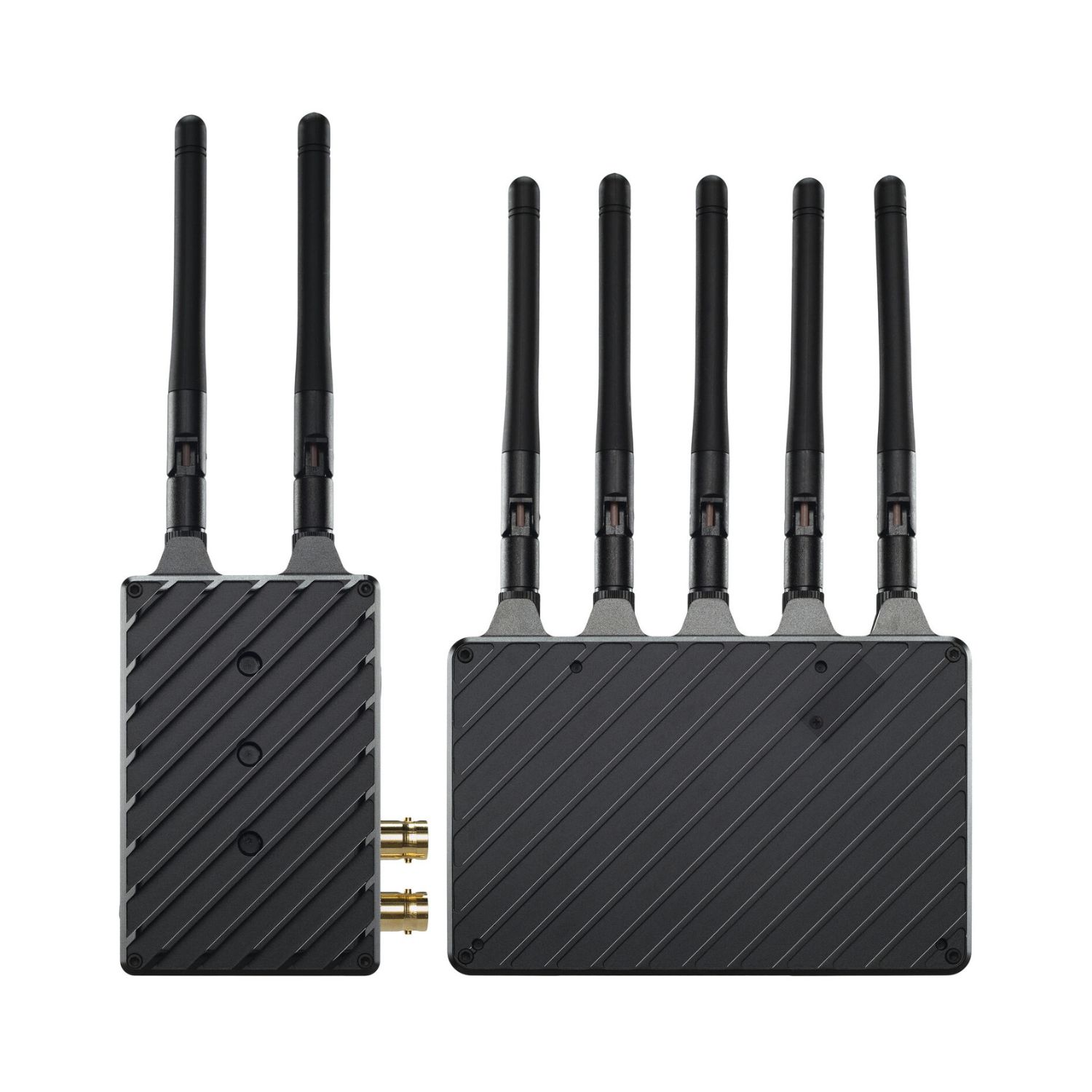

The Bolt 4K LT 750 4K TX/RX is a real time wireless video transmission system that supports video signals up to 4Kp30 via HDMI at a line-of-sight distance of up to 750ft (228m) with no image delay. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. These devices are cross-compatible with the entire Bolt 4K Family. This set includes both the Bolt 4K LT TX 750 and Bolt 4K LT RX 750.

Zero-Delay 4K Wireless Video
Transmit and receive images up to 4Kp30 via HDMI at a line-of-sight distance of up to 750ft (228m) with no image delay (>0.001sec).

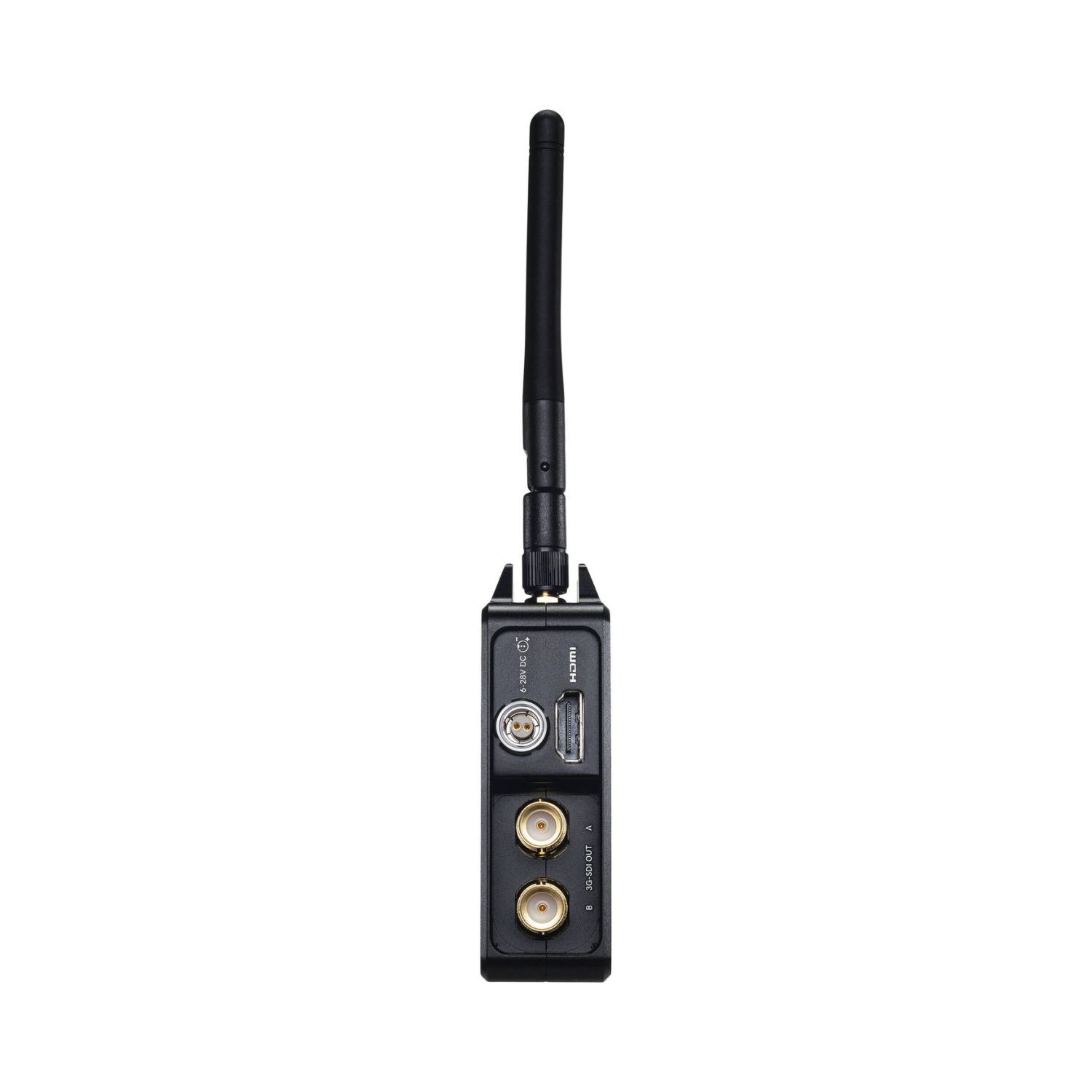

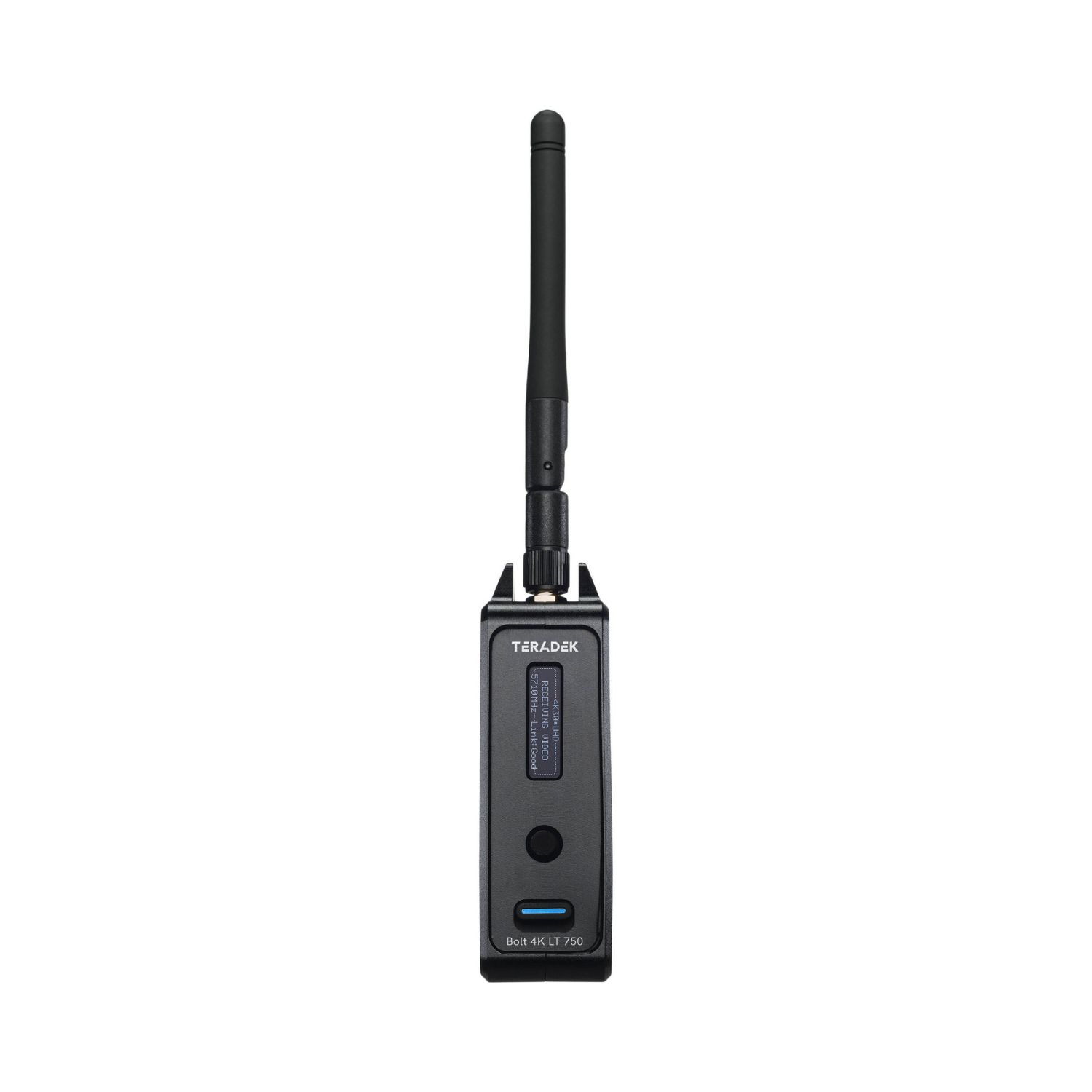

Transmitter:
Input: 1x HDMI 2.0 (up to 4Kp30), 1x 3G-SDI (up to 1080p60)
Output: 1x 3G-SDI (up to 1080p60)

Receiver:
Output: 1x HDMI 2.0 (up to 4Kp30), 2x 3G-SDI (up to 1080p60)

True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Send and receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.

Improved Wireless Performance
Reliable signal transmission and reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

Send Signal up to 6 Receivers
Link up to 6 RX receivers to any 1 TX transmitter to enable multiple points of viewing.

Lightweight Body with Versatile Mounting
TX Mounting: M3 / ¼”-20
RX Mounting: M3 / ¼”-20 / ⅜”x16

Universal Cross-Compatibility between all Bolt 4K Devices
Send and receive signals between any Bolt 4K series of devices for expanding workflow requirements.

Camera Metadata
Transmit metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.

Specifications

Bolt 4K LT 750 TX

• Video
  Video Inputs
  3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
  1 x HDMI 1.4b Type-A receptacle
  Video Outputs
  3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
  Sdi Ancillary Data Support
  Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
  Color Sampling
  SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
  Delay Tx To Rx
  <0.001sec
  Input Cross Conversion
  Yes, HDMI to SDI
• Supported Resolutions
  4Kp23.98/24/25/29.97/30 (HDMI only)
  1080p23.98/24/25/29.97/30/50/59.94/60
  1080psf23.98/24/25/29.97/30
  1080i50/59.94/60
  720p50/59.94/60
  480p50 576p59.94/60
  480i(NTSC)/576i(PAL)
• Video Processing
  Video Compression
  Visually Lossless
  Color Correction
  None
• Audio Processing
  Audio Format
  48kHz 24-bit PCM
• Inputs
  Audio Input
  Embedded SDI/HDMI Audio Input (2 Channel)
• Physical
  Dimensions
  60mm x 103mm x 33mm
  Weight
  206g (7.3oz)
  Construction
  Milled Aluminum(Chassis) and regulation-compliant PCB
  Mountability
  Multiple mounting options with 1/4″x20 and M3 holes
• Interfaces
  Configuration Interfaces
  OSD with Menu, Joystick Navigation
  Switches
  On/Off Switch
  Mobile App
  Bolt App
  Desktop App
  Bolt Manager application for OSX & Windows
  Usb Interface Functionality
  Upgrade via Micro-USB
  External Control
  Via Bolt App
  Bluetooth
  2.4 GHz
• Network
  Antennas
  2 External 2dBi antennas (included)
  Wireless
  Non-DFS Frequencies:
  5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
  DFS Frequencies:
  5.270 ~ 5.670 GHz
  Number Of20 Mhz Channels
  25 (region dependent)
  Number Of40 Mhz Channels
  13 (region dependent)
  Channel Bandwidth
  20MHz, 40MHz
  Rf Channel Selection
  Auto, Manual
  Encryption
  AES-256, RSA-1024 key exchange
  Rf Power
  19 dbm EIRP (2 external 2dBi antennas) (<80mW transmit power)
  Rf Sensitivity
  2 External 2dBi antennas (included)
  Range
  Up to 750 ft, line of sight
  Unicast Multicast
  Can connect one Transmitter to up to 6 Receivers
  Noise Rejection
  Can coexist with WiFi and 5GHz cordless phones
  Can operate up to 6 sets in same location
• Power
  Power Input
  2-Pin Circular locking Connector 6-28 VDC
  Battery
  None, optional Sony/Canon dual battery plate
  Nominal Power Consumption
  9 Watts
• Environmental
  Operating Temperature
  0-40℃

Bolt 4K LT 750 RX

• Video
  Video Outputs
  3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
  1 x HDMI 1.4b Type-A receptacle
  Sdi Ancillary Data Support
  Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
  Color Sampling
  SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
  Delay Tx To Rx
  <0.001sec
• Supported Resolutions
  4Kp23.98/24/25/29.97/30 (HDMI only)
  1080p23.98/24/25/29.97/30/50/59.94/60
  1080psf23.98/24/25/29.97/30
  1080i50/59.94/60
  720p50/59.94/60
  480p50 576p59.94/60
  480i(NTSC)/576i(PAL)
• Video Processing
  Video Compression
  Visually Lossless
  Video Format Conversion Support
  No (4Kp30 signals are output on HDMI, but scaled to 1080p30 and output over SDI. 4Kp60 signals received from Bolt 4K XT devices are scaled to 1080p60 and output over both HDMI and SDI outputs)
  Color Correction
  None
• Audio Processing
  Audio Format
  48kHz 24-bit PCM
• Outputs
  Audio Output
  Embedded SDI/HDMI Audio Output (2 Channel)
• Physical
  Dimensions
  122mm x 94mm x 27mm
  Weight
  292g (10.3oz)
  Construction
  Milled Aluminum(Chassis) and regulation-compliant PCB
  Mountability
  Multiple mounting options with 1/4″x20 and M3 holes
• Interfaces
  Configuration Interfaces
  OSD with Menu, Joystick Navigation
  Switches
  On/Off Switch
  Mobile App
  Bolt App
  Desktop App
  Bolt Manager application for OSX & Windows
  Usb Interface Functionality
  Upgrade via Micro-USB
  External Control
  Via Bolt App
  Bluetooth
  2.4 GHz
• Network
  Antennas
  5 External 2 dBi antennas (included)
  Wireless
  Non-DFS Frequencies:
  5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
  DFS Frequencies:
  5.270 ~ 5.670 GHz
  Number Of20 Mhz Channels
  25 (region dependent)
  Number Of40 Mhz Channels
  13 (region dependent)
  Channel Bandwidth
  20MHz, 40MHz
  Rf Channel Selection
  Auto, Manual
  Encryption
  AES-256, RSA-1024 key exchange
  Rf Power
  17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)
  Rf Sensitivity
  5 External 2 dBi antennas (included)
  Range
  Up to 750 ft, line of sight
  Unicast Multicast
  Each Receiver can register up to 6 Transmitters
  Noise Rejection
  Can coexist with WiFi and 5GHz cordless phones
  Can operate up to 6 sets in same location
• Power
  Power Input
  2-Pin Circular locking Connector 6-28 VDC
  Battery
  None, optional Gold or V mount battery plate
  Nominal Power Consumption
  11 Watts
• Environmental
  Operating Temperature
  0-40℃

In The Box

• 1 x Bolt 4K LT TX 750
• 1 x Bolt 4K LT RX 750
• 1 x Light Stand Adapter ¼”-20
• 1 x Hot Shoe Adapter
• 2 x Ultra Thin HDMI Male Type A (Full) to HDMI Male Type A (Full) Cable – 18in
• 1 x 2pin Connector to PowerTap Cable (P-Tap/D-Tap) – 18in
• 1 x Micro-USB (5pin) to USB Cable (Firmware Cable) – 36in
• 2 x 3G-SDI (BNC to BNC) Cable – 10in
• 1 x 18 Watt AC Adapter Cable (2-Pin Connector) – 6ft
• 7 x TX/RX Antenna (2dBi WIFI 2.4/5.8GHz, Small)
