Teradek Cube 725 – HEVC/AVC (H.265/H.264) SDI/HDMI GbE Decoder

Teradek Cube 725 – HEVC/AVC (H.265/H.264) SDI/HDMI GbE Decoder

Cube 725 is the latest in Teradek’s line of professional, scalable integrated decoders designed for video over IP delivery. Compatible with Cube encoders, Cube 625 offers SD/HD MPEG-4 HEVC/AVC decoding for point-to-point video distribution, allowing content creators, broadcasters and system integrators to cost-effectively and reliably meet strict QoS requirements.

With flexible HDMI/3G-SDI dual-output and Ethernet/WiFi (2.4/5Ghz)/cellular USB connection options, Cube 725 streamlines IP video deployment in existing workflows and enhances infrastructure for all users. Small form factor and high-performance decoding make it one of the most versatile solutions for content delivery strategies in the video ecosystem.

Specifications

• Video

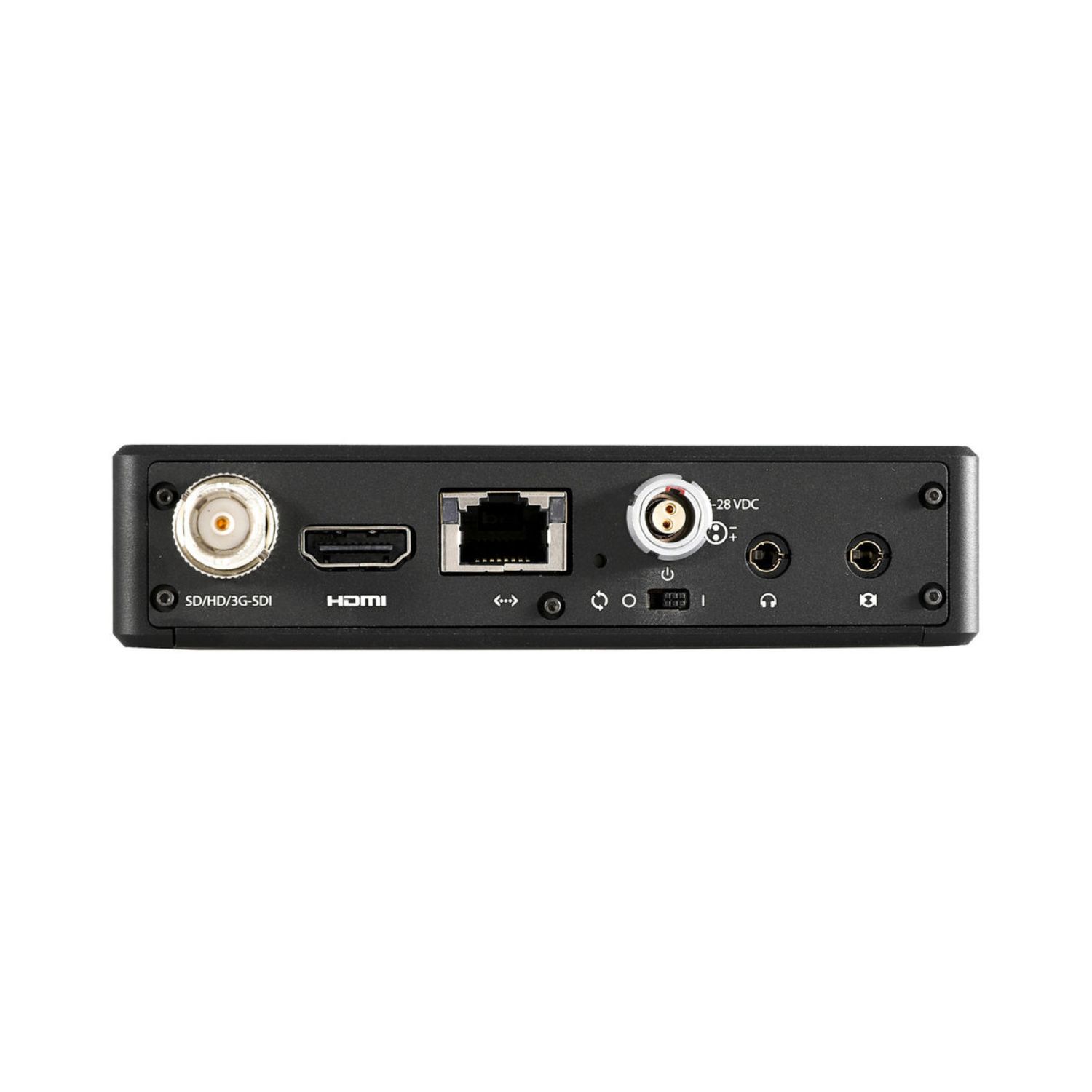

  Video Outputs
  HDMI 1.4a: Full Size
  SD/HD/3G-SDI (75 Ω BNC)
• Supported Resolutions
  1080p 24/25/29.97/30/50/59.94/60*
  1080i 50/59.94/60
  1080PsF 23/24/25/29/30
  720p 50/59.94/60
  576i
  480i
  480p (for HDMI output only)
  576p (for HDMI output only)
• Video Processing
  Video Compression
  Decompresses HEVC (H.265), H.264, Baseline, Main and High Profile
  Supported Video Bitrate
  250 Kbps to 15 Mbps*
  *15 Mbps (wired), 10 Mbps (WiFi)
  Test Pattern Generator Support
  None
  Video Format Conversion Support
  Built in Video Scaler and Deinterlacer
  Color Correction
  None
• Protocol Support
  Network Protocols
  TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP,NDI
  Supported Video Transport Protocols
  RTP/RTSP: Unicast/TCP, Unicast/UDP, Multicast/UDP streams
  MPEG Transport Stream: Unicast/TCP (pushed in from an external source, or pulled down from a remote server such as Core), Unicast/UDP, Multicast/UDP
  Teradek Streaming : Unicast/UDP, Multicast/UDP
  Remote Control
  Teradek Core
• Audio Processing
  Audio Compression
  AAC-LC, MPEG Layer 2
• Inputs
  Audio Input
  Embedded Audio Input
  Analog Line or Mic in, adjustable gain
• Outputs
  Audio Output
  Headphone output, adjustable volume
• Physical
  Dimensions
  2.7″ W x 3.5″ D x 1.5″H [68.58 x 88.9 x 38.1 mm]
  Weight
  8.4oz [238g] (without modems)

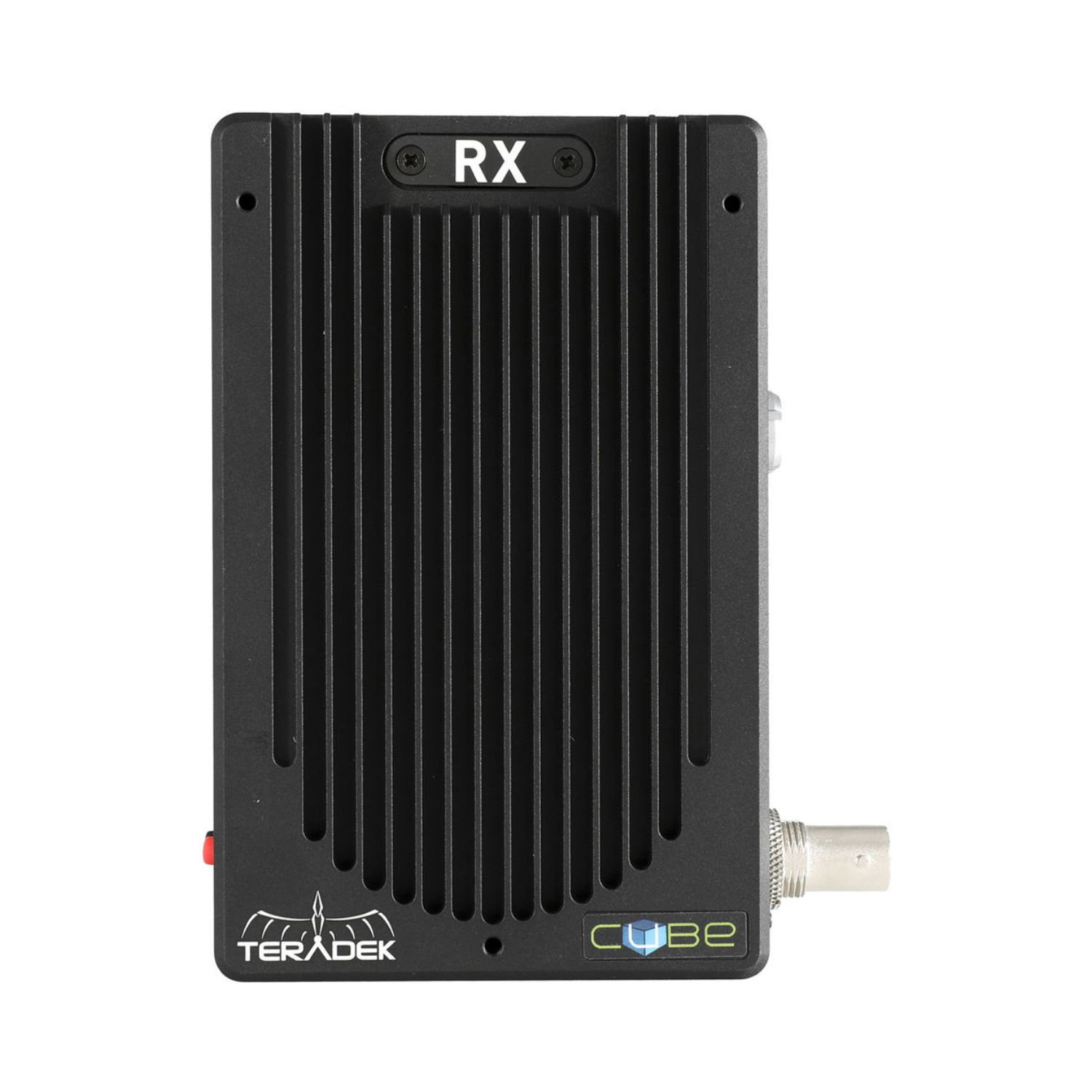

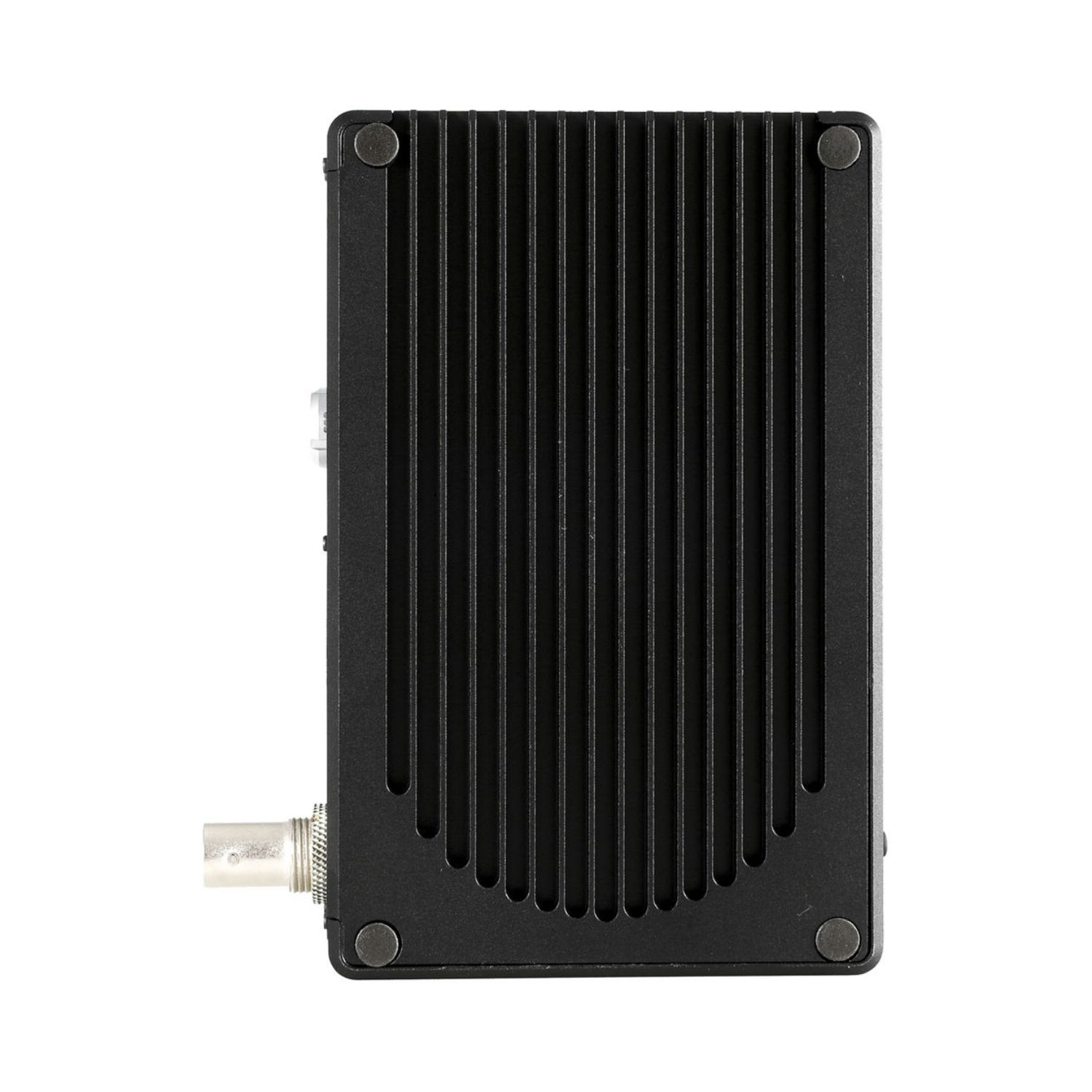

  Construction
  Milled Aluminum
• Interfaces
  Http
  WebUI for Configuration and Control
  Configuration Interfaces

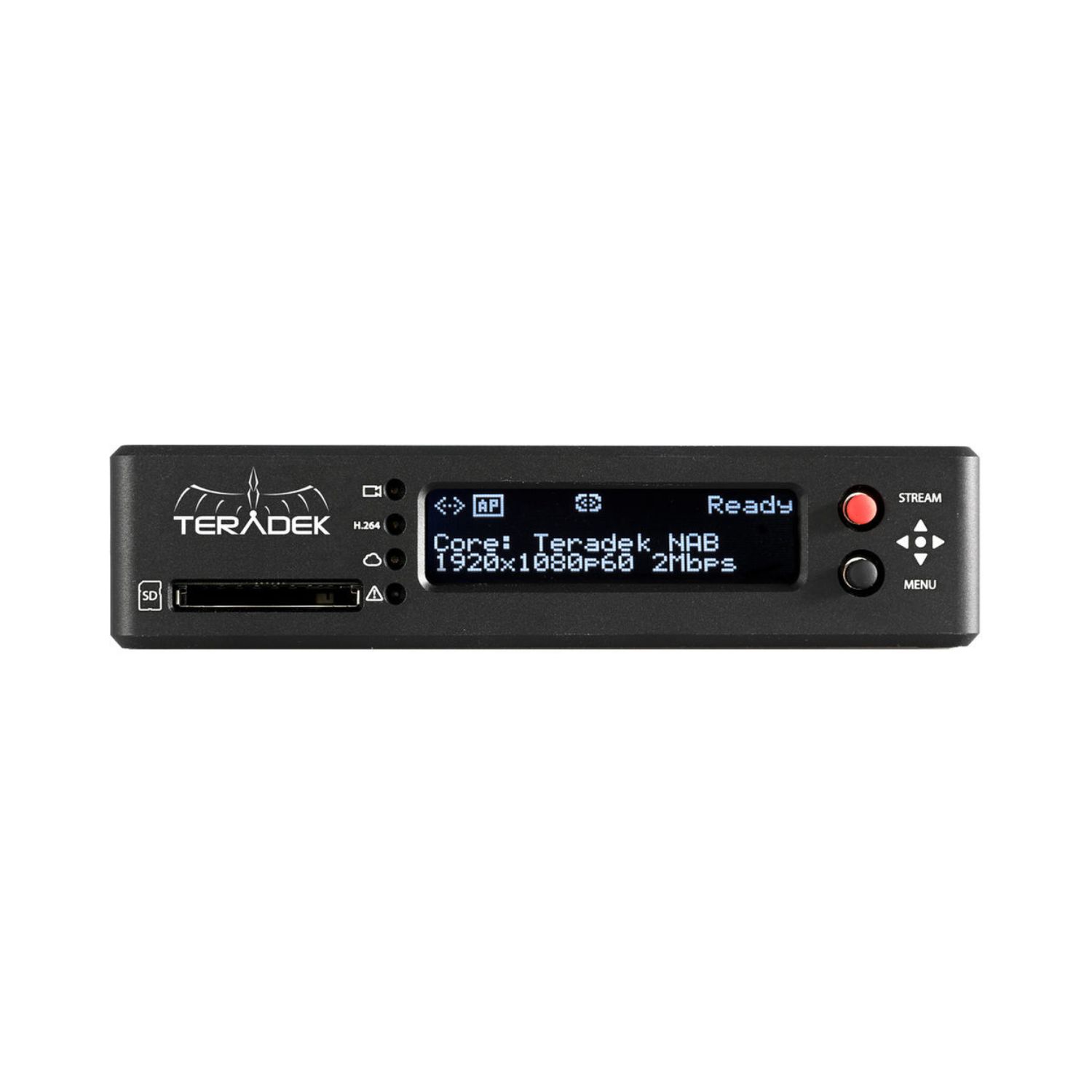

  OLED Display with joystick Navigation buttons
  Feature-rich WebUI for configuration and control
  Switches
  On/Off and Reset Switch

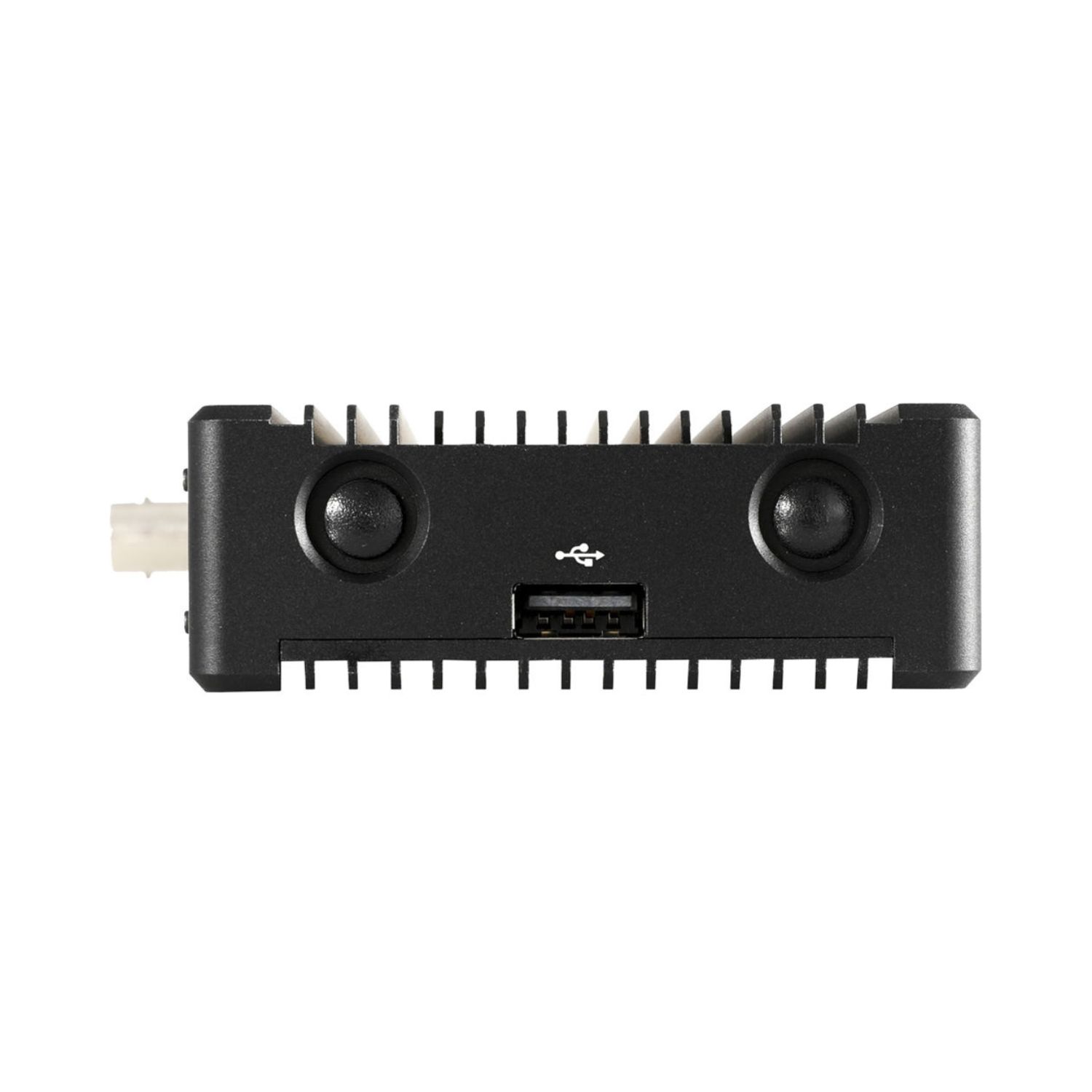

  Usb Interface Functionality
  Powered USB 2.0 host port
• Network
  Ethernet
  10/100BASE-T
  Wireless
  WiFi: 2.4/5GHz 802.11 a/b/g/n MiMo
  Usb
  None
  Rf Channel Selection
  Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only)
  Configurable to specific channels
  Encryption
  802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES
• Power
  Power Input
  2 Pin Connector Power input
  Battery
  No Battery Included
  Nominal Power Consumption
  8W, 7W (no WiFi)
  Auxilary Power Input
  6-28V DC
• Environmental
  Operating Temperature
  0 – 50 C

In The Box

• 1 x Cube 725
• 1 x Ethernet Cable
• 1 x HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in Cable
• 1 x SDI – BNC to BNC Cable, 10in
• 1 x PSU 2pin Conn to 18W AC Adapter (Int) – 6ft
