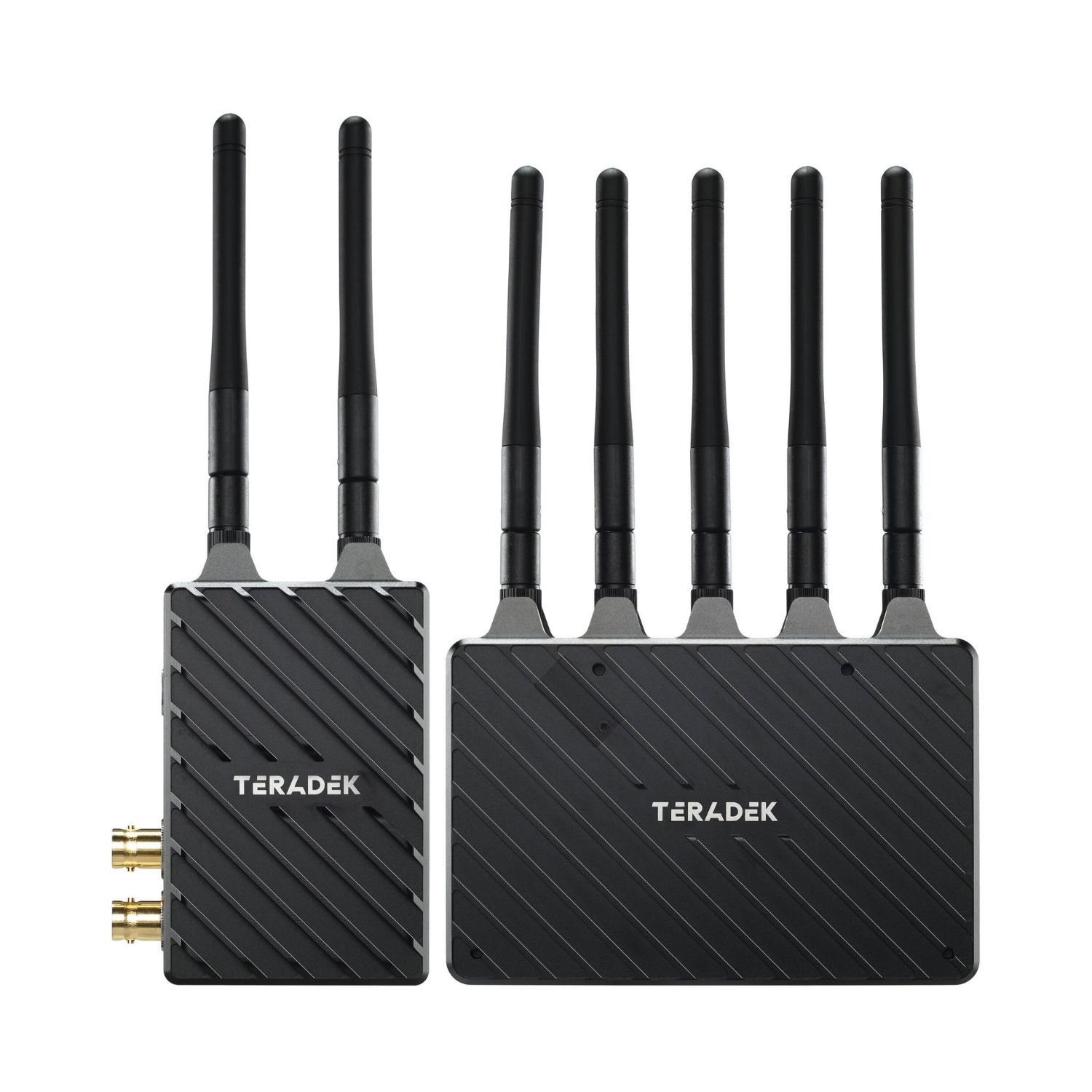

Teradek Bolt 4K LT 1500 3G-SDI/HDMI Wireless Transmitter and Receiver Set

Teradek Bolt 4K LT 1500 3G-SDI/HDMI Wireless Transmitter and Receiver Set

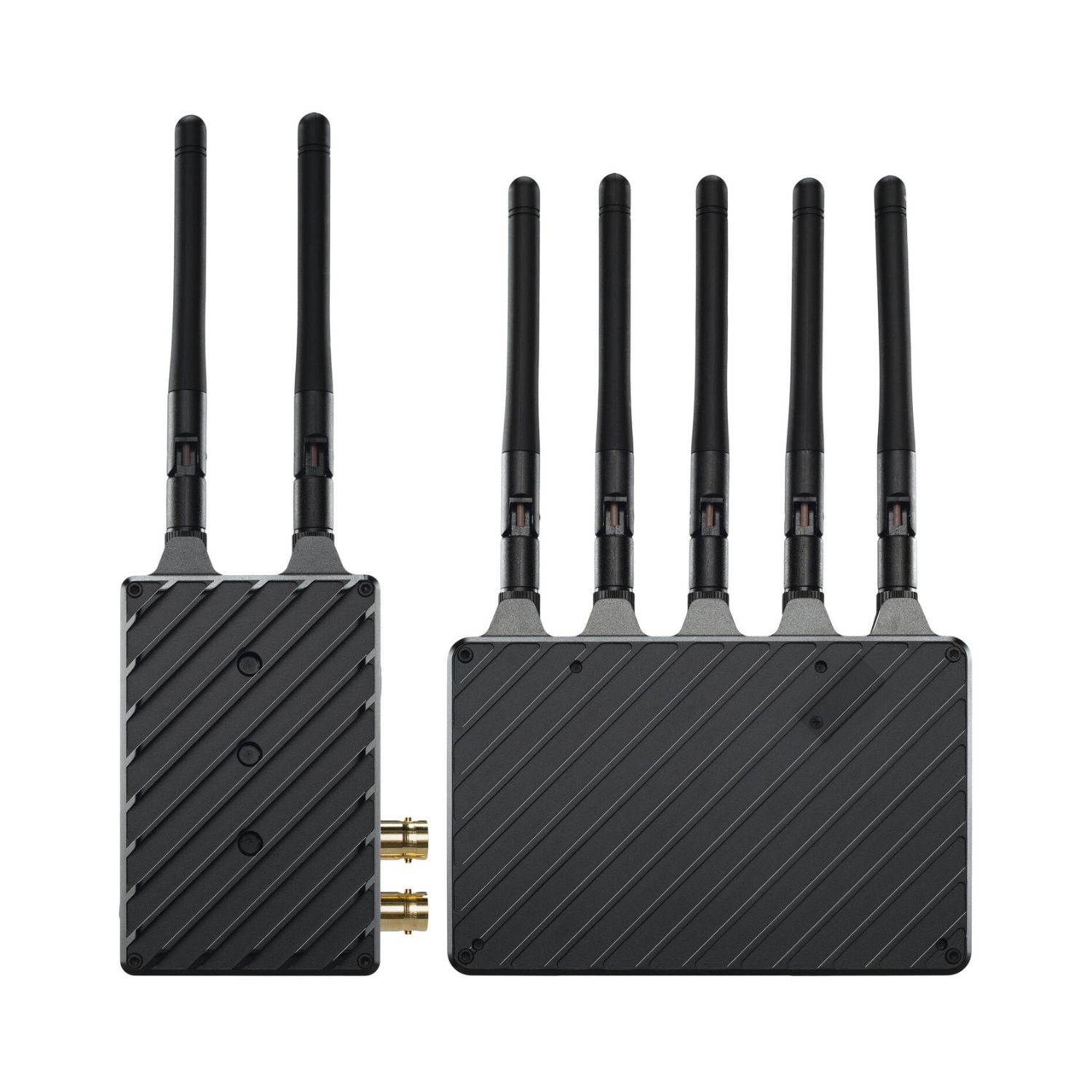

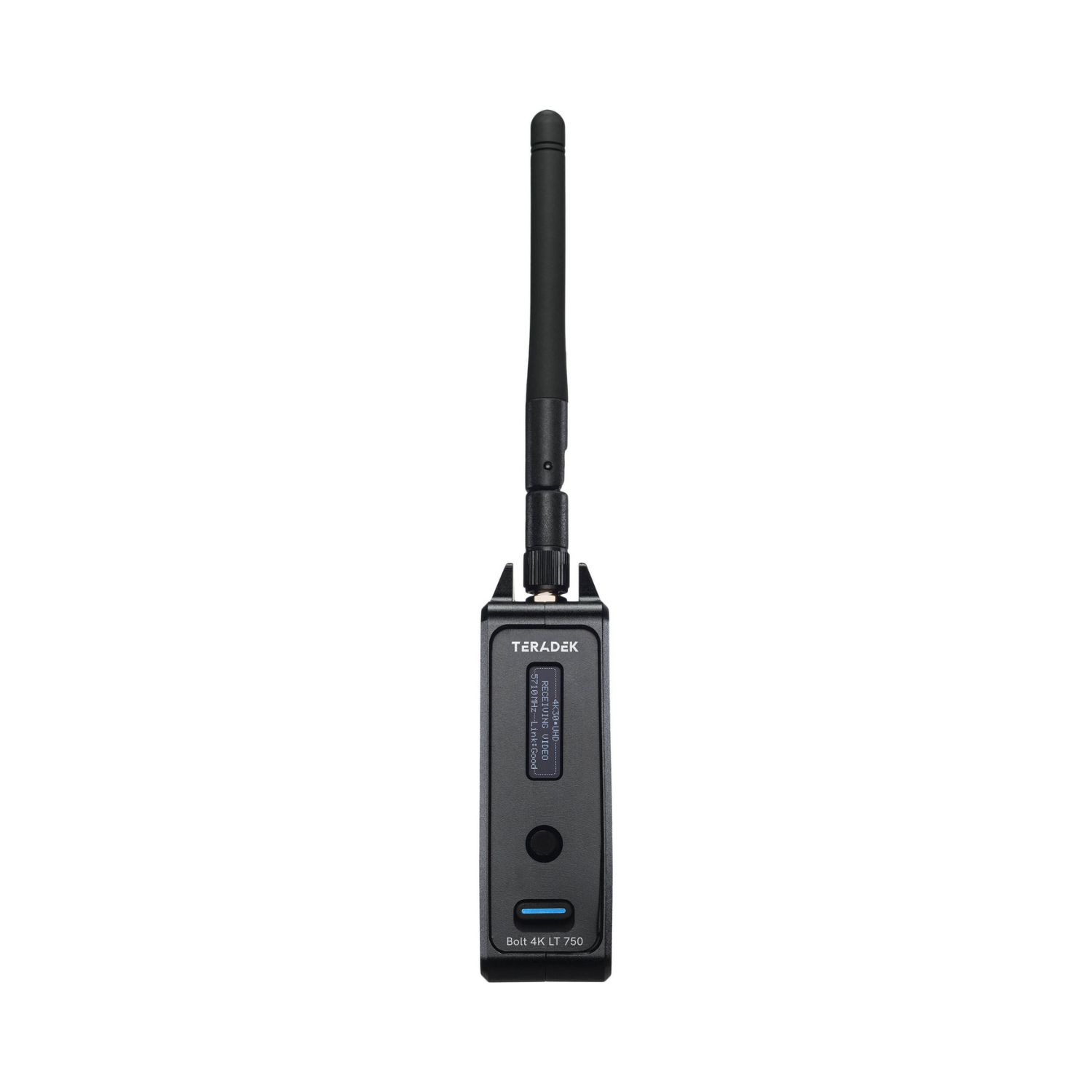

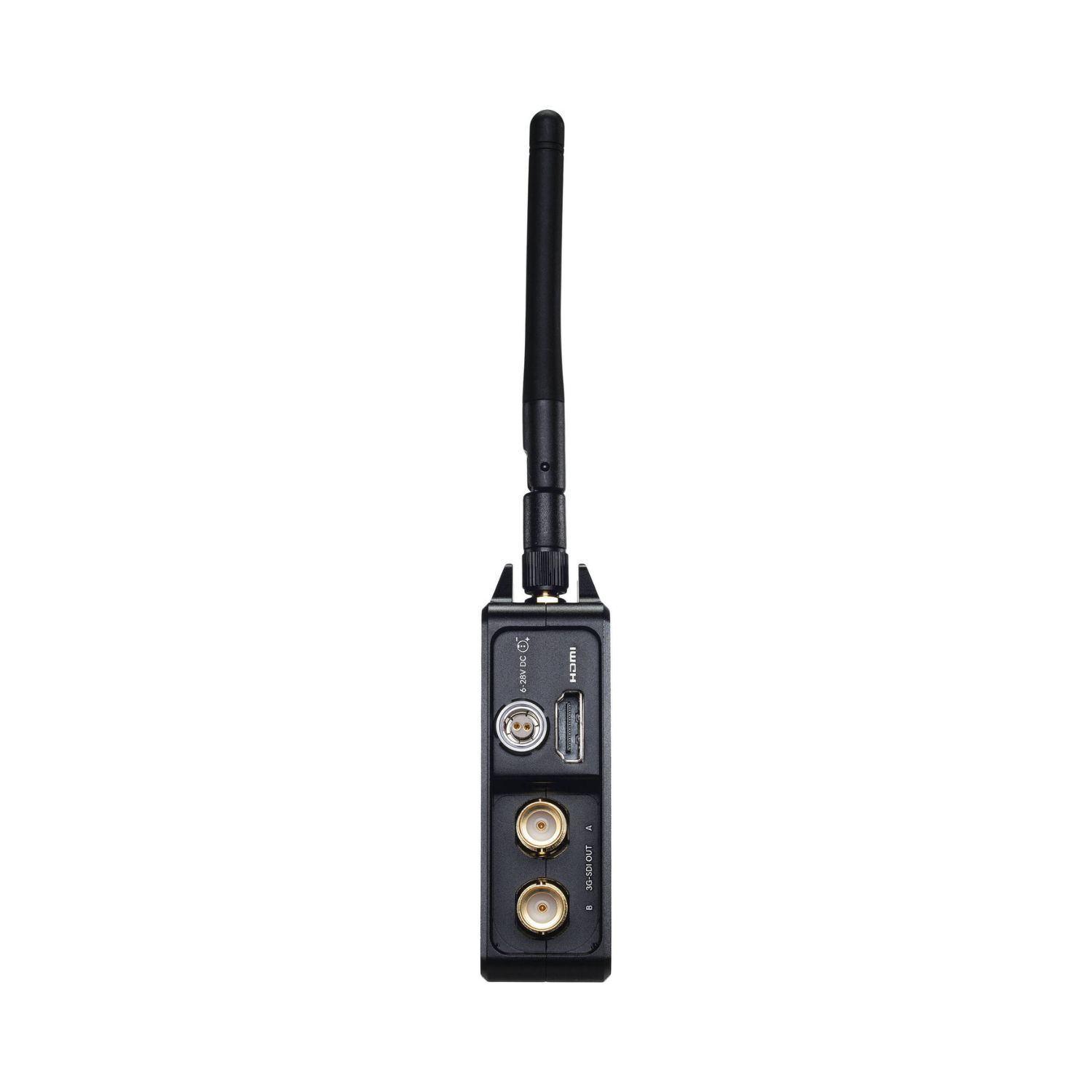

Transmit and receive lossless HD video from up to 1500′ line of sight with the Bolt 4K LT 1500 3G-SDI/HDMI Wireless Transmitter and Receiver Kit from Teradek. The kit includes a wireless transmitter and receiver that feature bright OLED displays and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support. The transmitter inputs up to 4K video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI.

The transmitter sends up to 4K30 video to the Bolt 4K LT receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

The Bolt 4K series units are all cross-compatible, so you can transmit to different Bolt 4K series receiver models. The system also supports an iOS app that easily connects via Bluetooth, which provides a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4″-20, 3/8″-16, and M3 mounting threads to mount your transmitter and receiver on a variety of cameras, cages, or rigs.

Specifications

Display
Embedded Audio
SDI: 2-Channel
HDMI: 2-Channel

Encryption
256-Bit AES

Wireless
Wireless Range
1500′ / 457.2 m (Line-of-Sight)
# of Channels
13 (40 MHz)
25 (20 MHz)
Channel Bandwidth
40 MHz, 20 MHz
Frequency Range
Non-DFS Frequencies
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency
< 0.01 ms
RF Power
17 dBm

Format Support
Audio Format
2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression
Uncompressed
Timecode Support
Yes

Environmental
Operating Temperature
32 to 104°F / 0 to 40°C

In The Box

• 1 x Bolt 4K LT TX 1500
• 1 x Bolt 4K LT RX 1500
• 1 x Light Stand Adapter ¼”-20
• 1 x Hot Shoe Adapter
• 2 x Ultra Thin HDMI Male Type A (Full) to HDMI Male Type A (Full) Cable – 18in
• 1 x 2pin Connector to PowerTap Cable (P-Tap/D-Tap) – 18in
• 1 x Micro-USB (5pin) to USB Cable (Firmware Cable) – 36in
• 2 x 3G-SDI (BNC to BNC) Cable – 10in
• 1 x 18 Watt AC Adapter Cable (2-Pin Connector) – 6ft
• 7 x TX/RX Antenna (2dBi WIFI 2.4/5.8GHz, Small)
