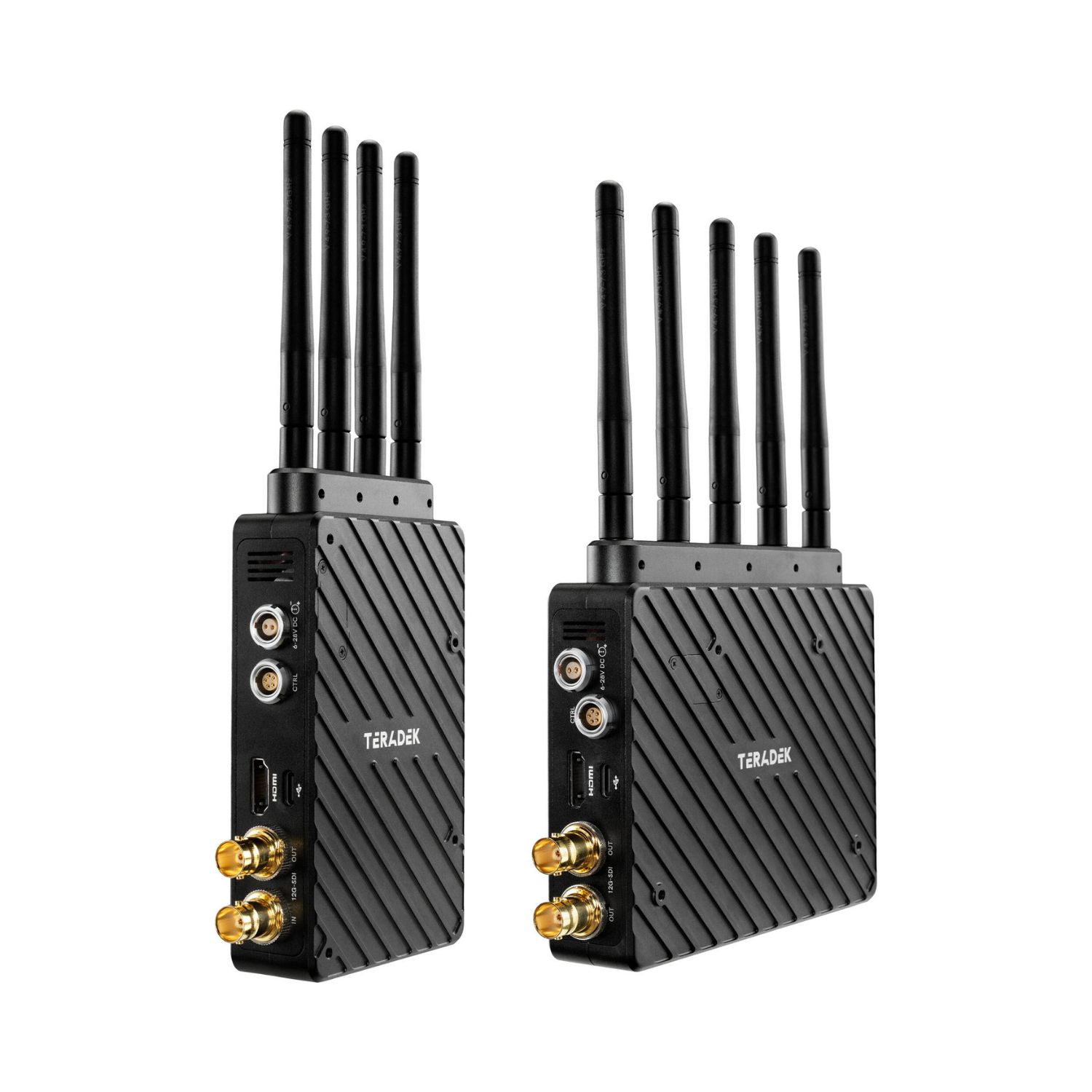

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Set

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Set

Premium Features. Unrivaled Connectivity. The Full 4K Solution.
The redesigned, streamlined, zero-delay wireless video solution with next-gen 6GHz connectivity plus cross-compatibility with the Bolt 4K Series. 12G-SDI + HDMI for full DCI 4K resolution in 10-bit 4:2:2 HDR; integrated 5-pin USB for wireless camera control; integrated battery plate options with power pass-through, and more.

The 6GHz Advantage Less Signal Congestion, More Bandwidth
For years, wireless signals have broadcasted over the 5GHz bands within U-NII 1 through 3. In addition to 5GHz, Bolt 6 utilizes U-NII 5, aka “6GHz”—with 12 new channels to access a new clear radio frequency (RF) environment. This means fewer devices competing for bandwidth, less interference, and the ability for more wireless links to coexist in a single area

BOLT SERIES CROSS-COMPATIBILITY
Pair with up to 6 Receivers. Inter-Range Compatibility.
The Bolt 6 Series uses both the 6GHz and 5GHz unlicensed bands, so you can avoid signal congestion by using the U-NII 5 capability in Bolt 6, while retaining the ability to operate in 5GHz bands. Every Bolt 6 TX and RX device can be paired with any Bolt 4K device —regardless of range. The maximum range of the system in this scenario is always limited by the shortest range. In order to use 6GHz (U-NII 5), you will need a Bolt 6 on both the TX and RX side.

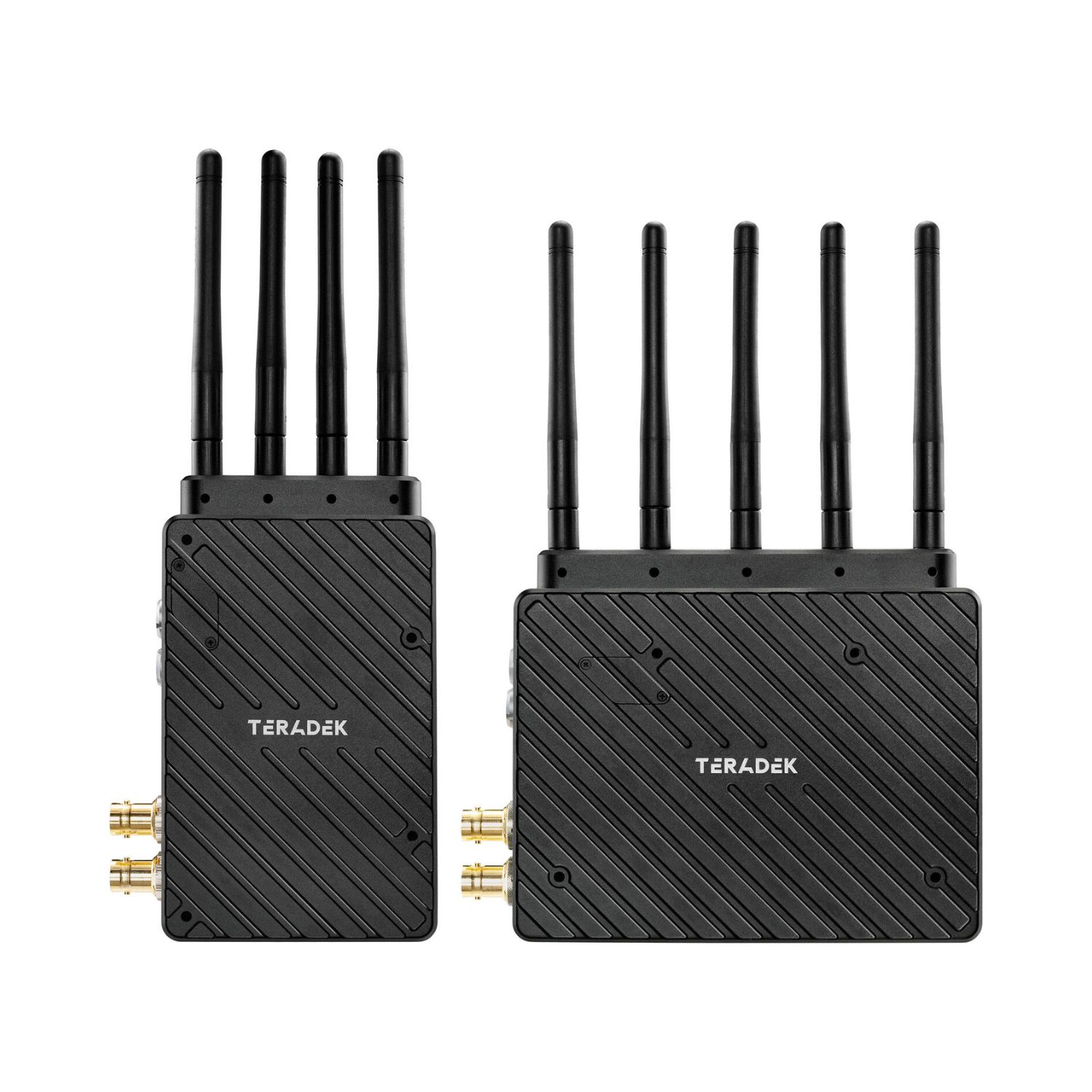

Antennas with Flex Appeal
Bolt 6 Series devices feature all-new flexible and rugged H and Array Antennas that hold up to the rigors of production. Learn more in our blog below.

Unlock the possibilities Wireless Camera Control with SmallHD
Teradek’s Bolt 6 XT Transmitters come with an integrated 5-pin USB connector for effortless pairing with SmallHD Smart 7 Monitors, allowing you to wirelessly control RED®, ARRI, and Sony VENICE cameras at a range of up to 5000+ft. Control start/stop, ISO, white balance, and more.

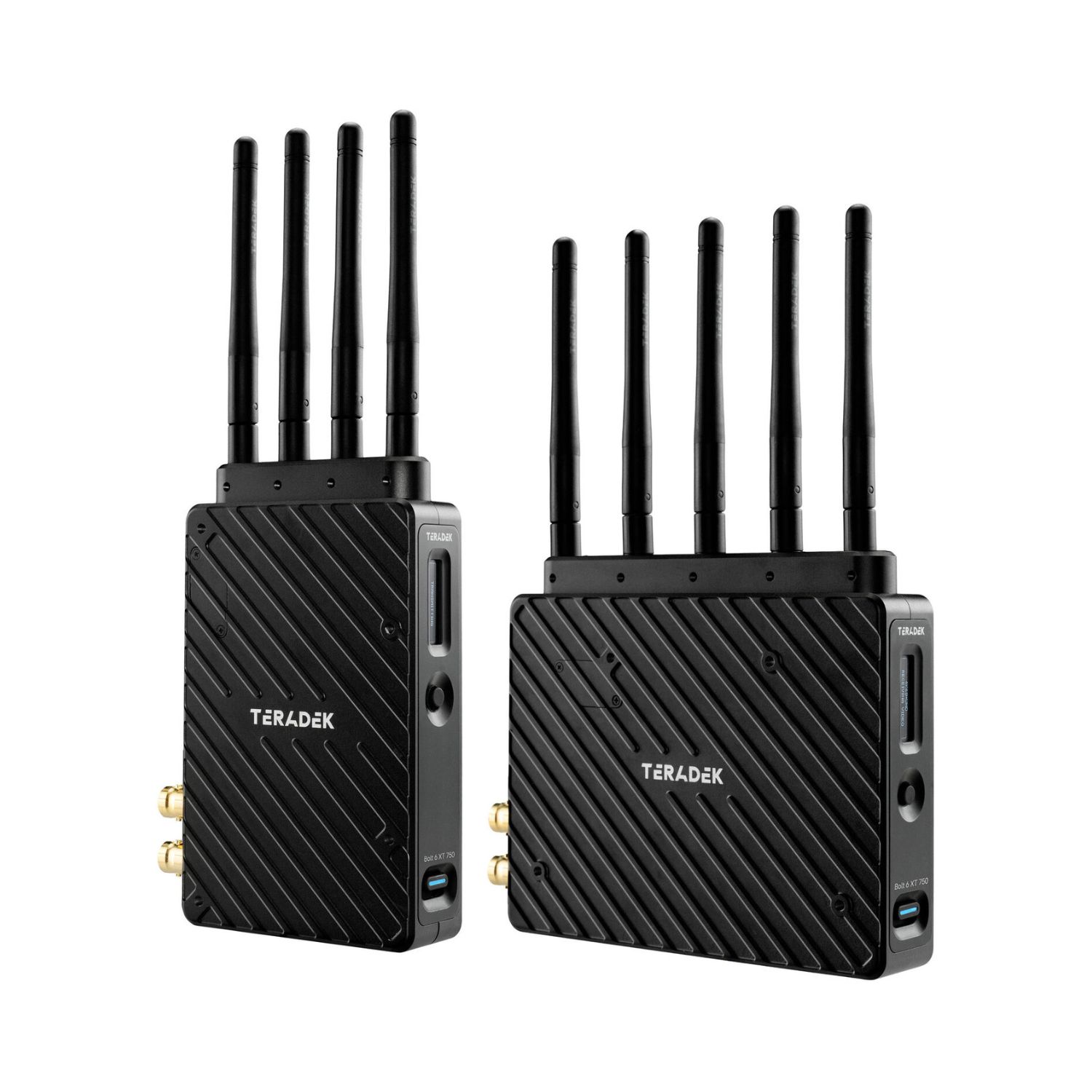

The Bolt 6 XT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 XT can send and receive color-accurate, True-HDR videos in under 0.001 milliseconds using the set’s included Bolt 6 XT video Transmitter and Receiver.

Key features of the Bolt 6 XT Set include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 XT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 XT users more options for frequency adjustments with 12 new channels.

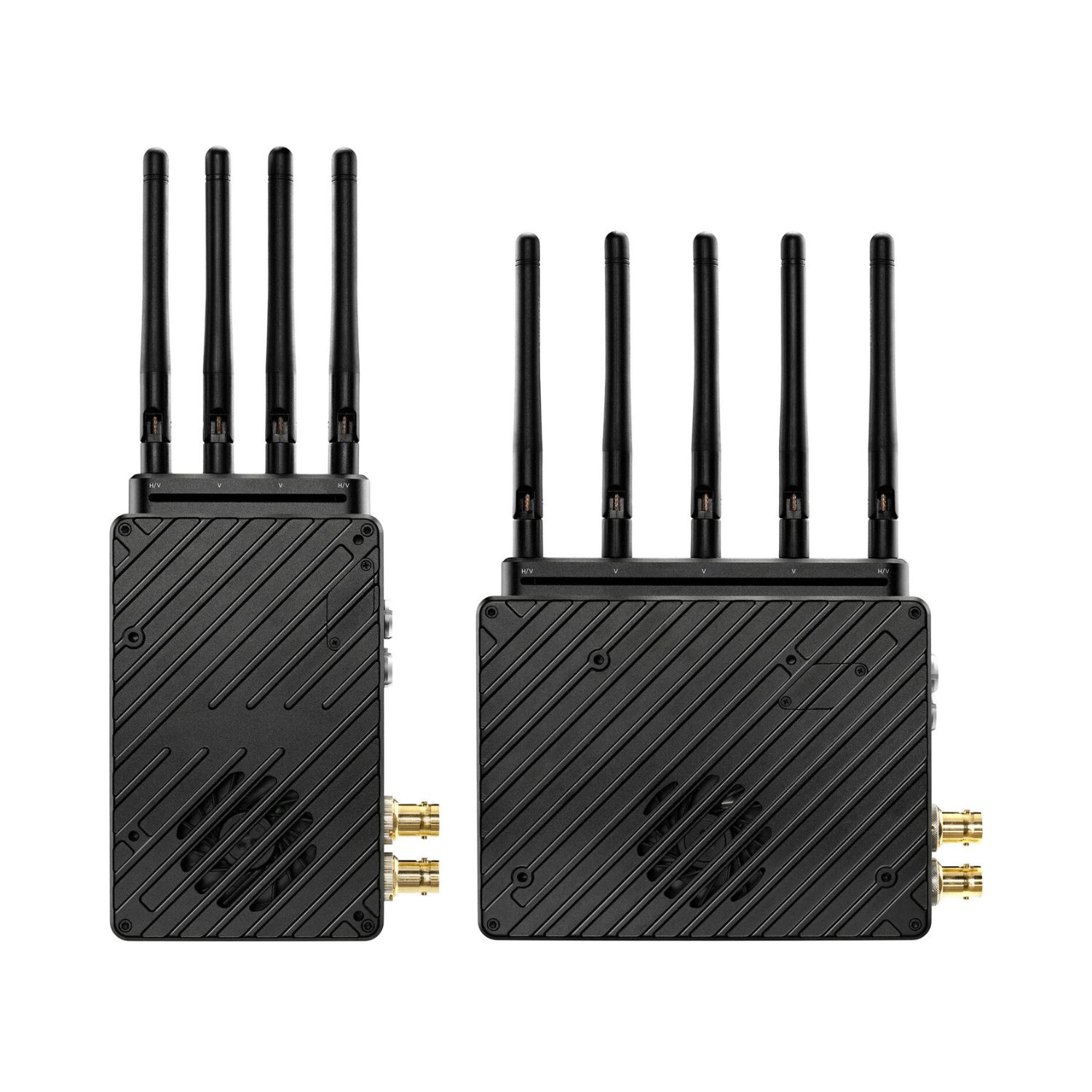

Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

The included Transmitter and Receiver are cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 XT offers three line-of-sight options: 750 ft., 1500 ft., which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

Specifications

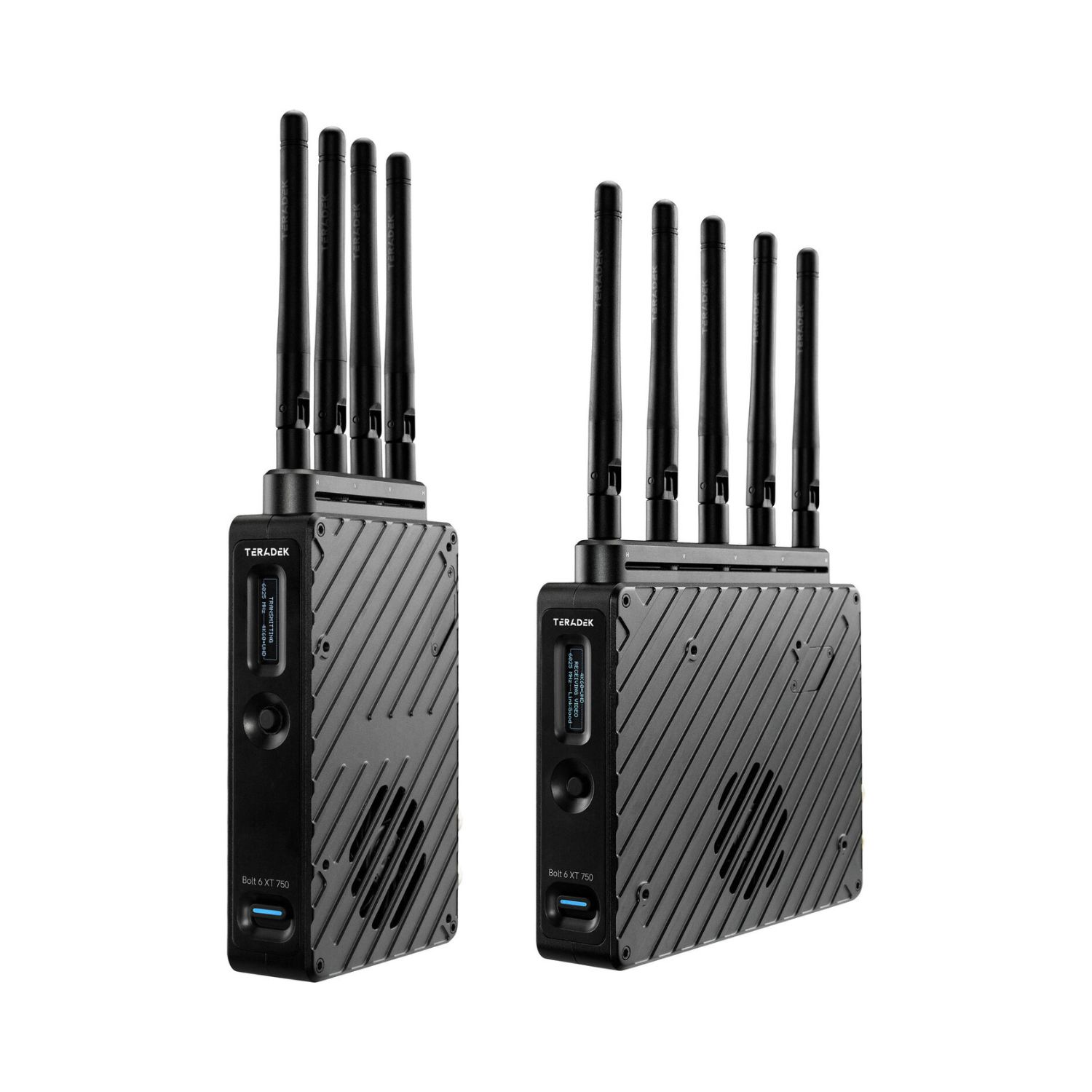

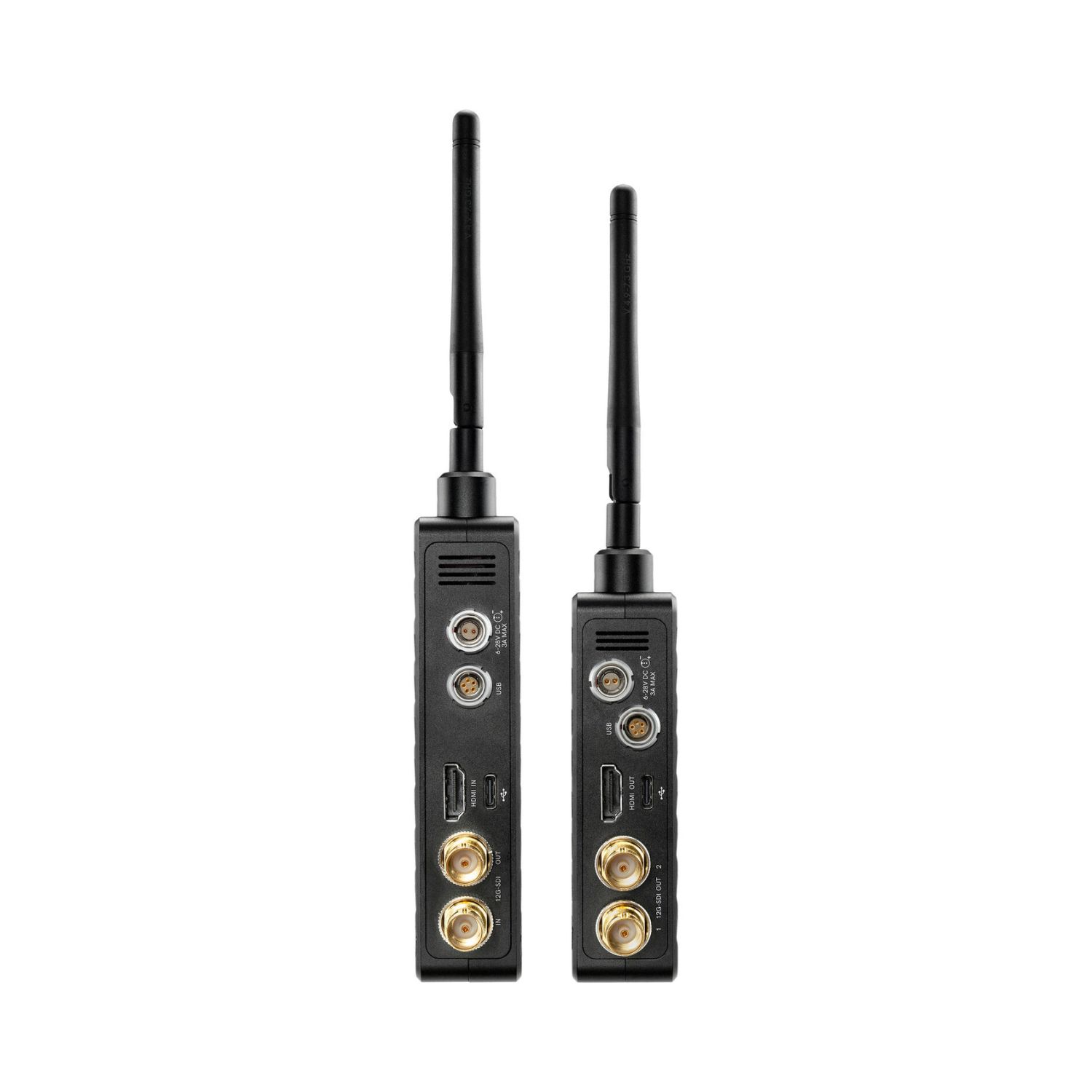

Bolt 6 XT 750 12G-SDI/HDMI Wireless TX

• Video
  Video Inputs
  12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
  1 x HDMI 2.0 Type-A receptacle
  Video Outputs
  12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
  Sdi Ancillary Data Support
  Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
  Color Sampling
  SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
  Delay Tx To Rx
  <0.001sec
  Input Cross Conversion
  Yes, HDMI to SDI
• Supported Resolutions
  4Kp23.98/24/25/29.97/30/50/59.94/60
  1080p23.98/24/25/29.97/30/50/59.94/60
  1080psf23.98/24/25/29.97/30
  1080i50/59.94/60
  720p50/59.94/60
  480p50 576p59.94/60
  480i(NTSC)/576i(PAL)
• Video Processing
  Video Compression
  Visually Lossless
  Color Correction
  None
• Audio Processing
  Audio Compression
  48kHz 24-bit PCM
• Inputs
  Audio Input
  Embedded SDI/HDMI Audio Input (2 Channel)
• Physical
  Dimensions
  132 x 91 x 27 mm
  Weight
  344g (12.1 Oz)
  Construction
  Milled Aluminum(Chassis) and regulation-compliant PCB

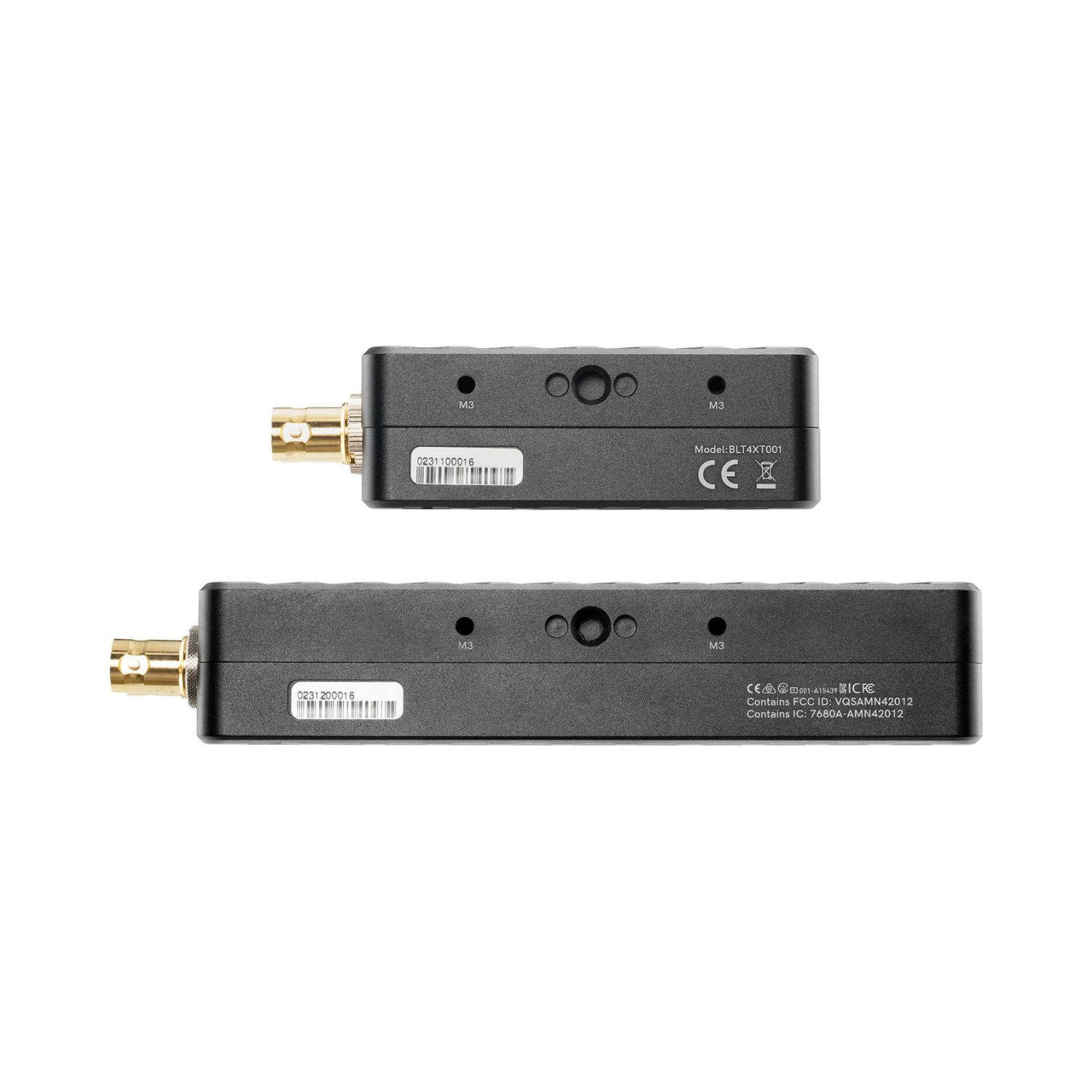

  Mountability
  Multiple mounting options with 1/4″x20 and M3 holes
• Interfaces
  Configuration Interfaces
  OSD with Menu, Joystick Navigation
  Switches
  On/Off Switch
  Usb Interface Functionality
  Upgrade via USB-C
  5pin Locking Connector CCU
  Bluetooth
  2.4 GHz
• Network

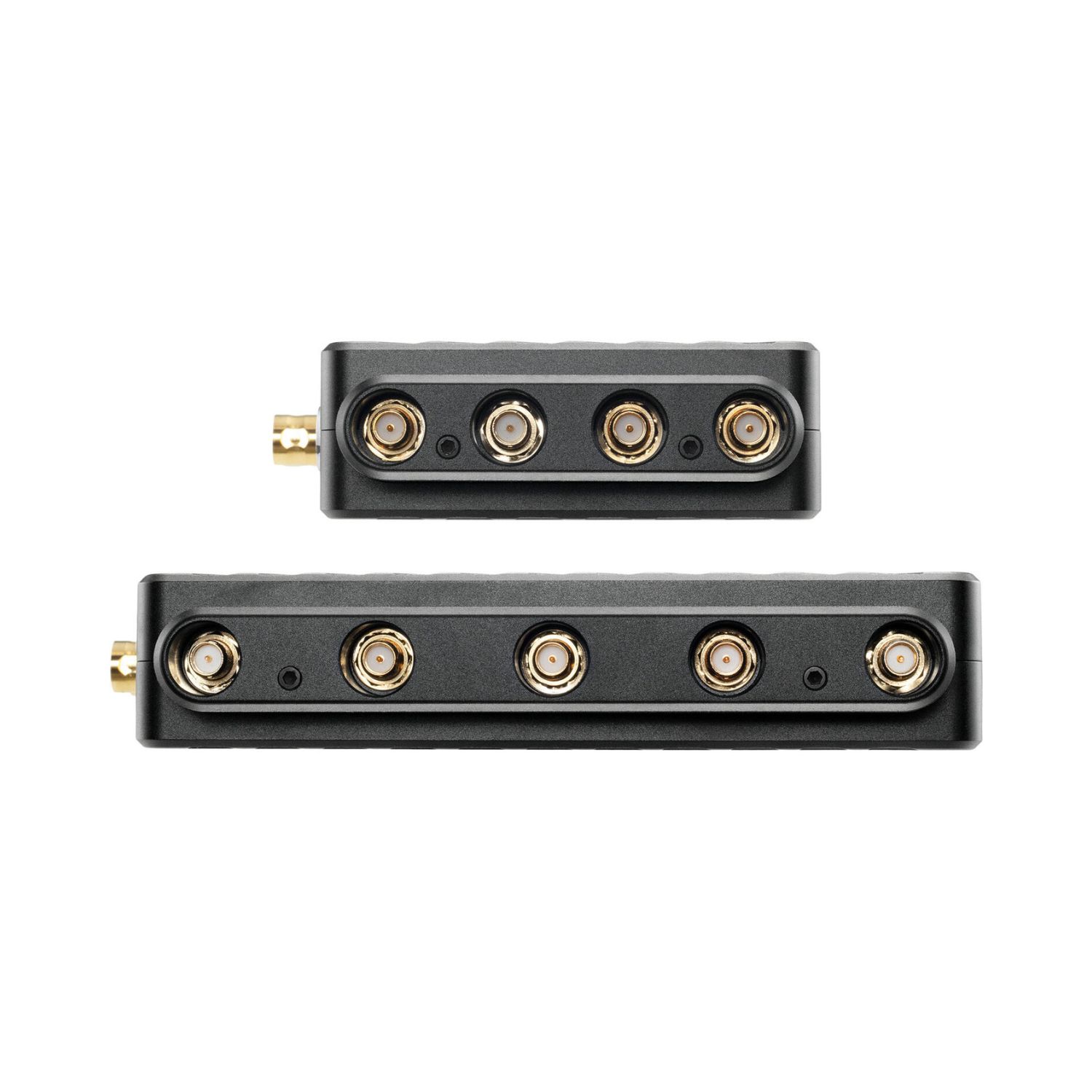

  Antennas
  4 External 2dBi antennas (included)
  Wireless
  Non-DFS Frequencies:
  5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
  DFS Frequencies:
  5.270 ~ 5.670 GHz
  Rf Channel Selection
  Auto, Manual
  Encryption
  AES-256, RSA-1024 key exchange
  Rf Power
  23 dbm EIRP
  Range
  Up to 750 ft, line of sight
  Unicast Multicast
  Can connect one Transmitter to up to 6 Receivers
  Noise Rejection
  Can coexist with WiFi and 5GHz cordless phones
  Can operate up to 6 sets in same location
• Power
  Power Input
  2-Pin Circular locking Connector 6-28 VDC
  Battery
  None, optional Sony/Canon dual battery plate
  Battery Runtime
  20 Watts
• Environmental
  Operating Temperature
  0-40℃

Bolt 6 XT 750 12G-SDI/HDMI Wireless RX

• Video
  Video Outputs
  12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
  1 x HDMI 2.0 Type-A receptacle
  Sdi Ancillary Data Support
  Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
  Color Sampling
  SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
  Delay Tx To Rx
  <0.001sec
  Output Video Scaling
  Yes, Framerate and Resolution Scaling
• Supported Resolutions
  4Kp23.98/24/25/29.97/30/50/59.94/60
  1080p23.98/24/25/29.97/30/50/59.94/60
  1080psf23.98/24/25/29.97/30
  1080i50/59.94/60
  720p50/59.94/60
  480p50 576p59.94/60
  480i(NTSC)/576i(PAL)
• Video Processing
  Video Compression
  Visually Lossless
  Color Correction
  17x17x17 3D LUT (supports 10-bit color)
• Audio Processing
  Audio Compression
  48kHz 24-bit PCM
• Outputs
  Audio Output
  Embedded SDI/HDMI Audio Output (2 Channel)
• Physical
  Dimensions
  112 x 139 x 27 mm
  Weight
  430g (15.2 Oz)
  Construction
  Milled Aluminum(Chassis) and regulation-compliant PCB
  Mountability
  Multiple mounting options with 1/4″x20 and 3/8″x16 holes
• Interfaces
  Configuration Interfaces
  OSD with Menu, Joystick Navigation
  Switches
  On/Off Switch
  Usb Interface Functionality
  Upgrade via USB-C
  5pin Locking Connector CCU
  Bluetooth
  2.4 GHz
• Network
  Antennas
  5 External 2 dBi antennas (included)
  Wireless
  Non-DFS Frequencies:
  5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
  DFS Frequencies:
  5.270 ~ 5.670 GHz
  Rf Channel Selection
  Auto, Manual
  Encryption
  AES-256, RSA-1024 key exchange
  Rf Power
  21 dbm EIRP
  Range
  Up to 750 ft, line of sight
  Unicast Multicast
  Can connect one Transmitter to up to 6 Receivers
  Noise Rejection
  Can coexist with WiFi and 5GHz cordless phones
  Can operate up to 6 sets in same location
• Power
  Power Input
  2-Pin Circular locking Connector 6-28 VDC
  Battery
  None, optional Gold or V mount battery plate
  Battery Runtime
  18 Watts
• Environmental
  Operating Temperature
  0-40℃

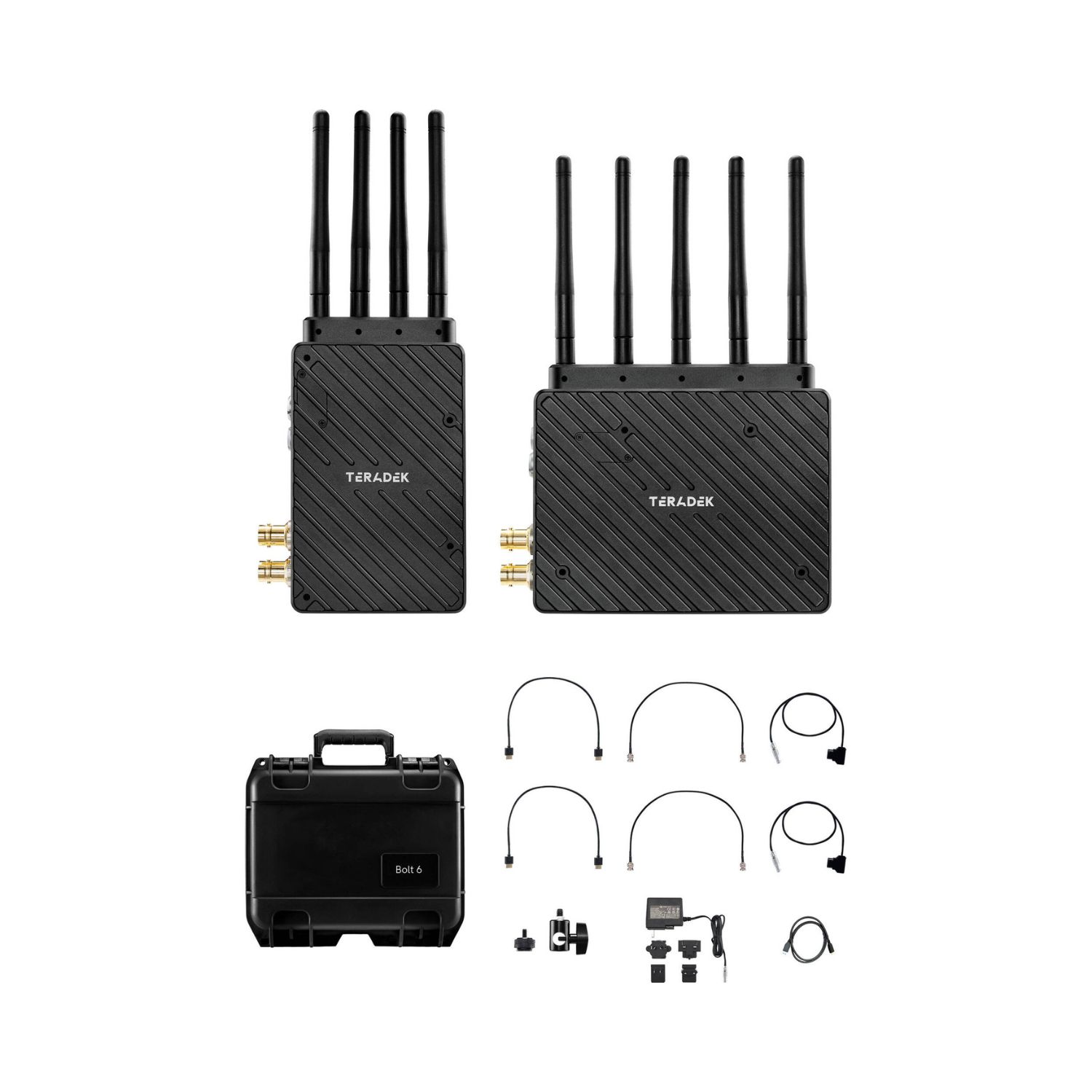

In The Box

• 1 x Bolt 6 XT 750 TX
• 1 x Bolt 6 XT 750 RX
• 1 x Lightstand Adapter 1/4-20in
• 1 x Hot Shoe Adaptor
• 2 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in/46cm Cable
• 2 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
• 2 x SDI 12G BNC to BNC 18in/46cm Cable
• 1 x Teradek Case Large – Bolt XT TX/2RX
• 1 x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
• 9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
• 1 x USB 2.0 Type A Male to USB Type C Male – 1m Cable
