Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Set

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Set

The 6GHz Advantage
Less Signal Congestion, More Bandwidth
For years, wireless signals have broadcasted over the 5GHz bands within U-NII 1 through 3. In addition to 5GHz, Bolt 6 utilizes U-NII 5, aka “6GHz”—with 12 new channels to access a new clear radio frequency (RF) environment. This means fewer devices competing for bandwidth, less interference, and the ability for more wireless links to coexist in a single area.

BOLT SERIES CROSS-COMPATIBILITY
Pair with up to 6 receivers. Inter-Range Compatibility.
The Bolt 6 Series uses both the 6GHz and 5GHz unlicensed bands, so you can avoid signal congestion by using the U-NII 5 capability in Bolt 6, while retaining the ability to operate in 5GHz bands. Every Bolt 6 TX and RX device can be paired with any Bolt 4K device —regardless of range. The maximum range of the system in this scenario is always limited by the shortest range. In order to use 6GHz (U-NII 5), you will need a Bolt 6 on both the TX and RX side.

The HDMI-Only Option
Bolt 6 LT HDMI offers the same capabilities as Bolt 6 LT, at an accessible price point–perfect for indie filmmakers and creators with compact camera setups.

Antennas with Flex Appeal
Bolt 6 Series Devices feature all-new flexible and rugged H and Array antennas that hold up to the rigors of production. Learn more in our blog below.

Unlock the possibilities
Wireless Camera Control with SmallHD
Teradek’s Bolt 6 LT can be combined with SmallHD Smart 7 Monitors and Wireless Camera Control Starter Kits, allowing you to wirelessly control RED®, ARRI, and Sony VENICE cameras, at a range of up to 5000+ ft. Control start/stop, ISO, white balance, and more.

The Bolt 6 LT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can send and receive color-accurate, True-HDR videos in under 0.001 milliseconds using the set’s included Bolt 6 LT video Transmitter and Receiver.

Key features of the Bolt 6 LT Set include range options designed for a variety of production needs, fast reconnection times, an intuitive, easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 LT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 LT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt 6 also offers new tools for high-end users, including better visibility over connections and signals, adding confidence to the workflow no matter how challenging the environment. It additionally gives you access to our new Long Range Mode, offering better video quality at longer distances. A 5-pin USB adapter, sold separately, allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors.

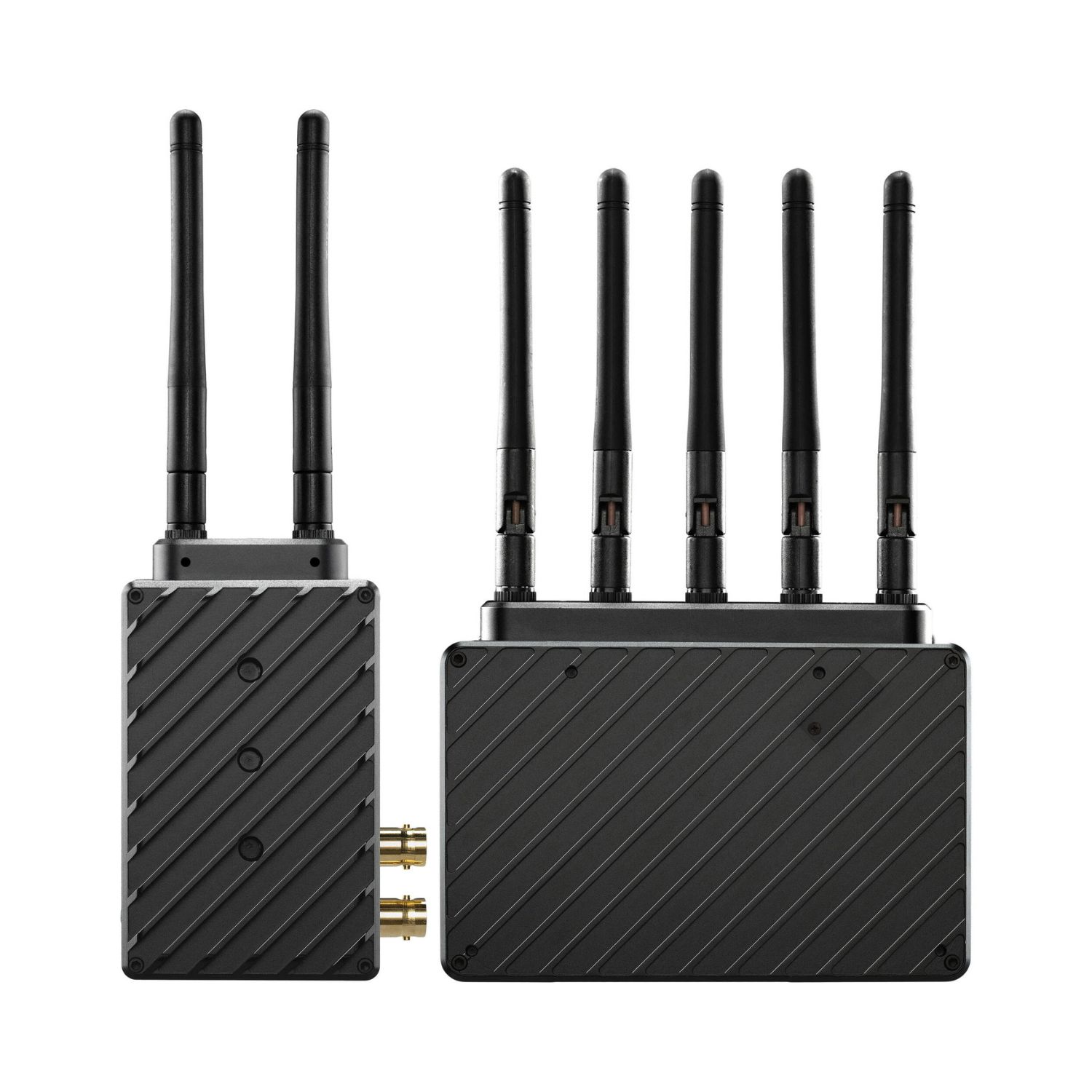

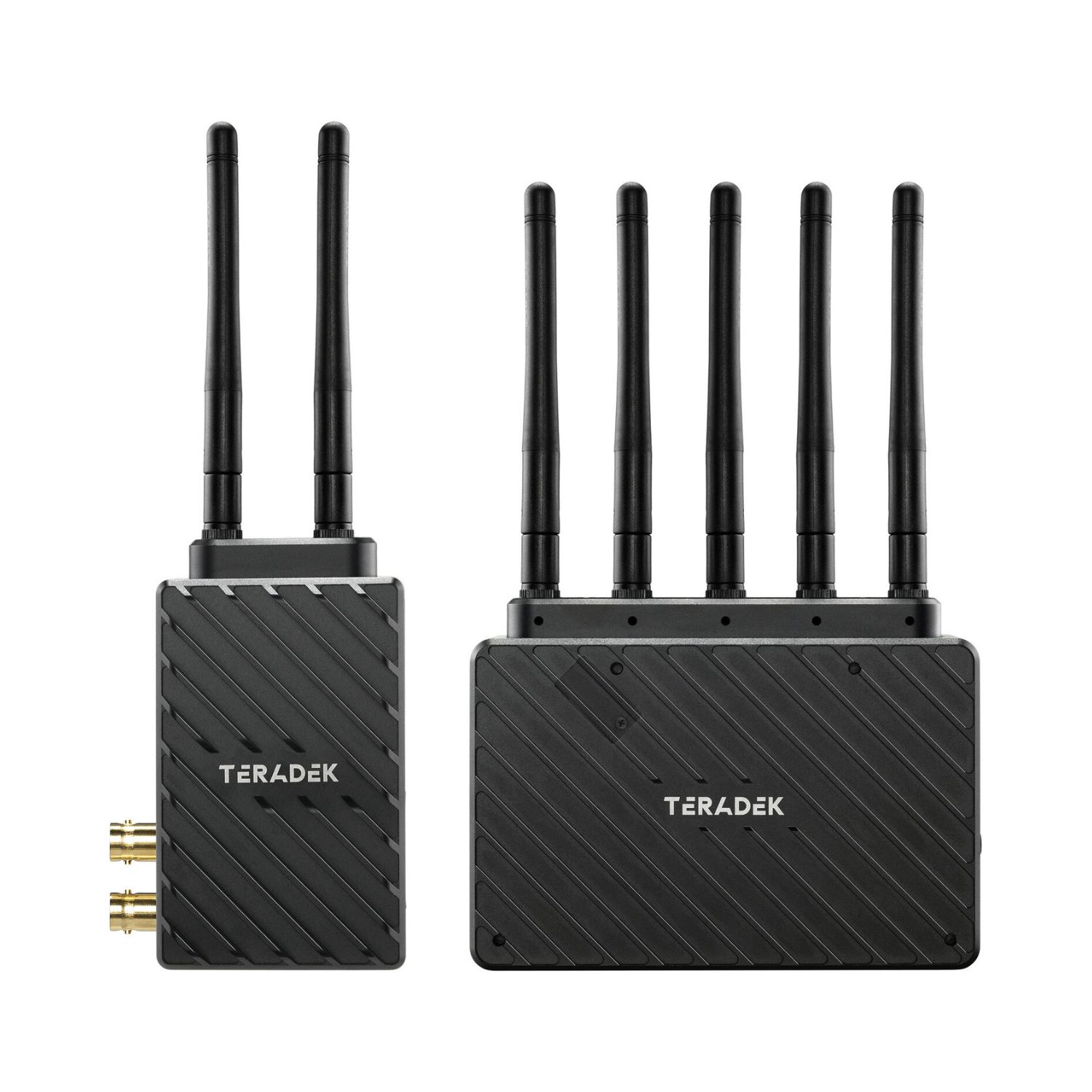

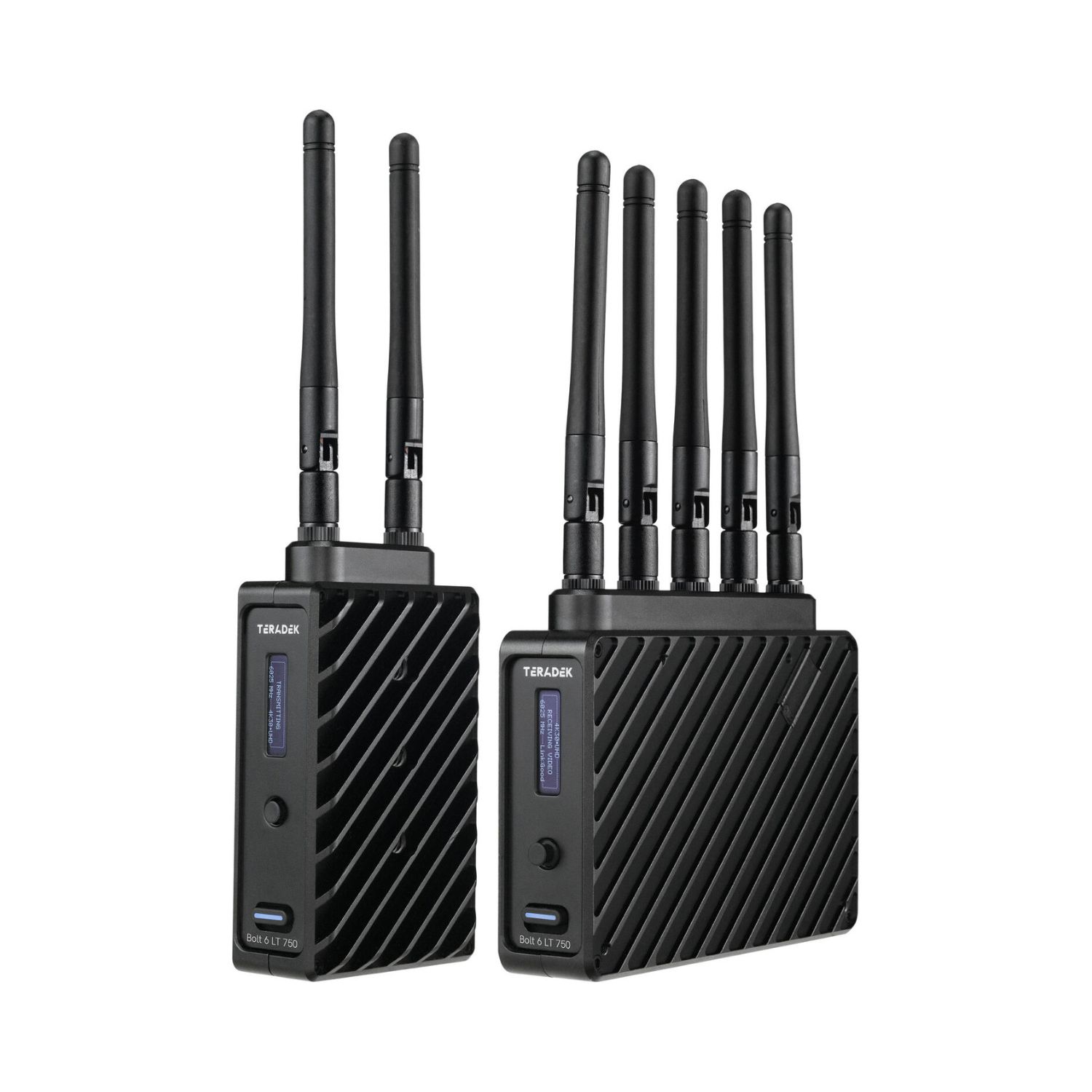

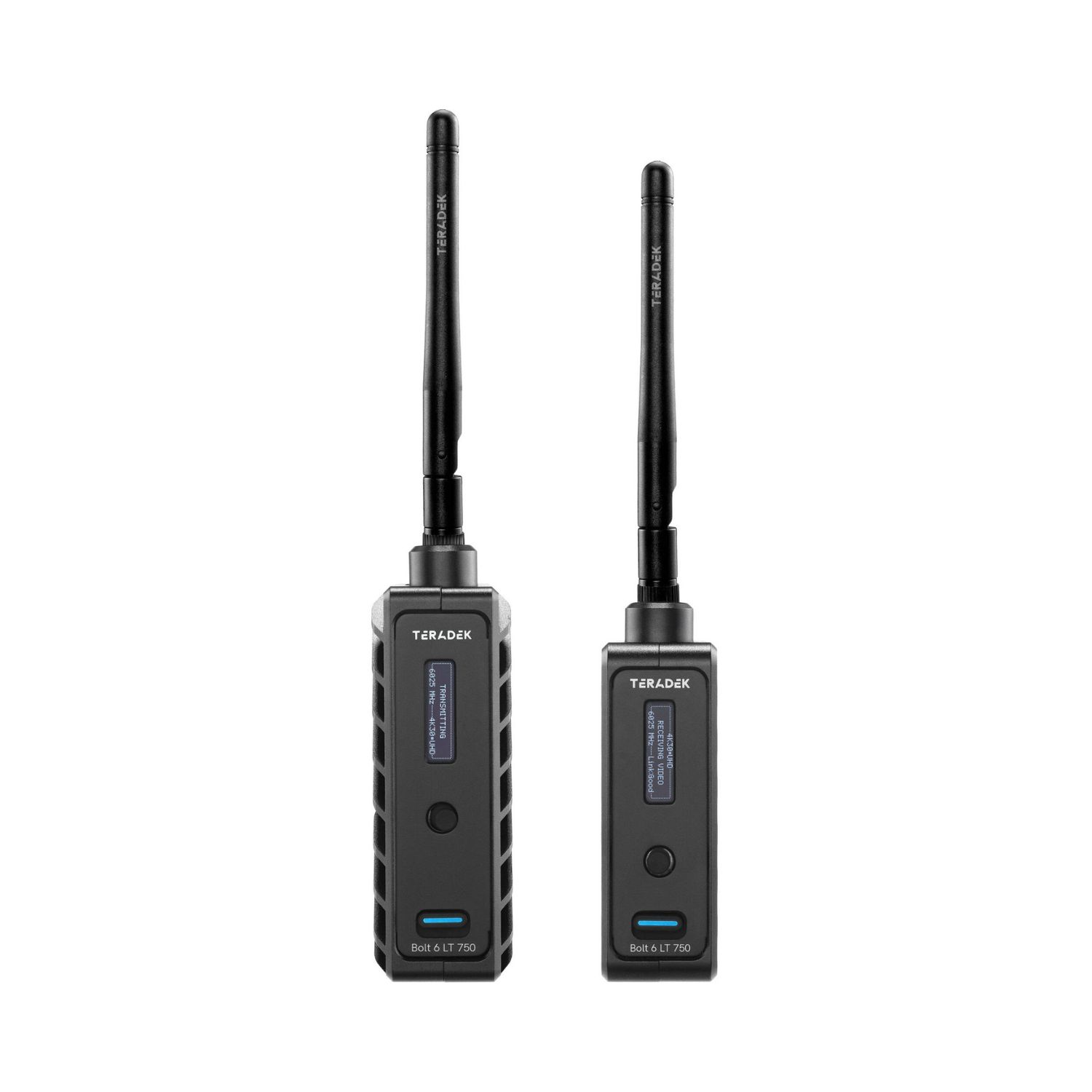

The included Transmitter, our most compact design ever, and the Receiver are cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 LT offers three line-of-sight options: 750 ft., 1500 ft., which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates. And while the Bolt 6 LT Set has both 4K HDMI and 1080p SDI input and outputs, you can also select the Bolt 6 LT HDMI model if your production needs require HDMI only.

Specifications

Bolt 6 LT 750 TX

• Video –

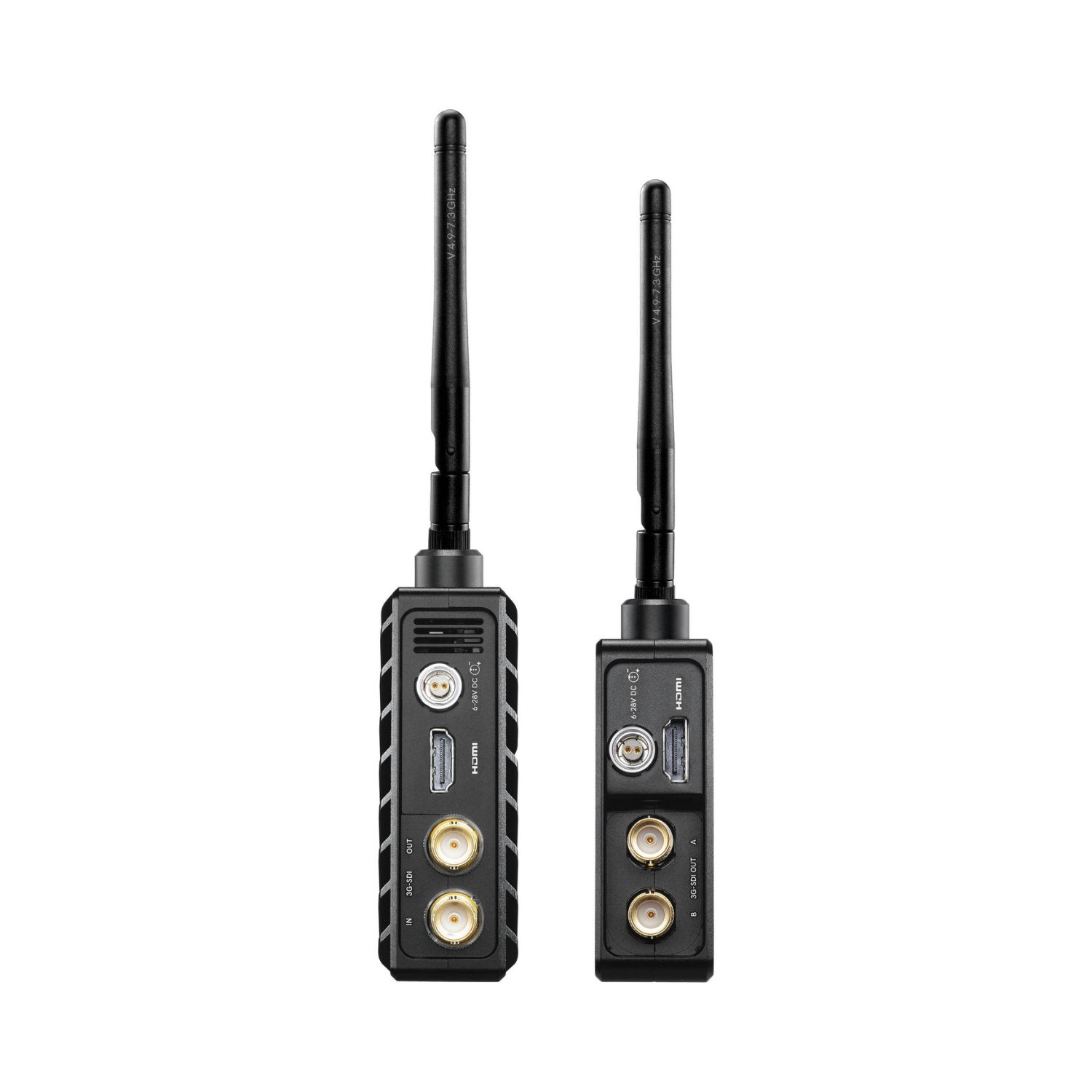

  Video Inputs
  3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
  1 x HDMI 1.4b Type-A receptacle
  Video Outputs
  3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
  Sdi Ancillary Data Support
  Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
  Color Sampling
  SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
  Delay Tx To Rx
  <0.001sec
  Input Cross Conversion
  Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)
• Supported Resolutions
  4Kp23.98/24/25/29.97/30 (HDMI only)
  1080p23.98/24/25/29.97/30/50/59.94/60
  1080psf23.98/24/25/29.97/30
  1080i50/59.94/60
  720p50/59.94/60
  480p59.94 576p50
  480i(NTSC)/576i(PAL)
• Video Processing
  Video Compression
  Visually Lossless
  Color Correction
  None
• Audio Processing
  Audio Compression
  48kHz 24-bit PCM
• Inputs
  Audio Input
  Embedded SDI/HDMI Audio Input (2 Channel)
• Physical
  Dimensions
  60mm x 103mm x 33mm
  Weight
  206g (7.3oz)
  Construction
  Milled Aluminum(Chassis) and regulation-compliant PCB

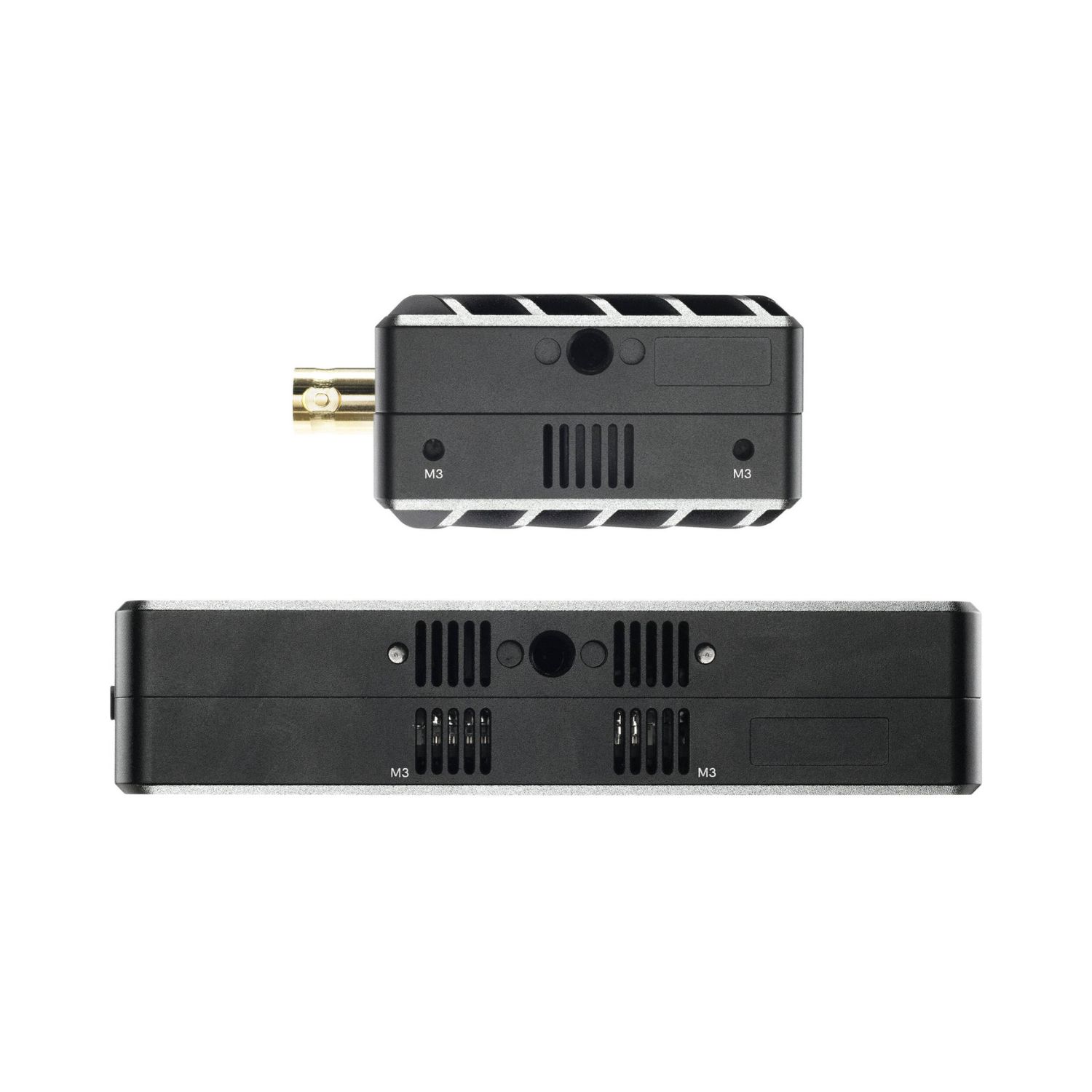

  Mountability
  Multiple mounting options with 1/4″x20 and M3 holes
• Interfaces
  Configuration Interfaces
  OSD with Menu, Joystick Navigation
  Switches
  On/Off Switch
  Mobile App
  Bolt App
  Desktop App
  Bolt Manager application for OSX & Windows
  Usb Interface Functionality
  Upgrade via Micro-USB
  Bluetooth
  2.4 GHz
• Network

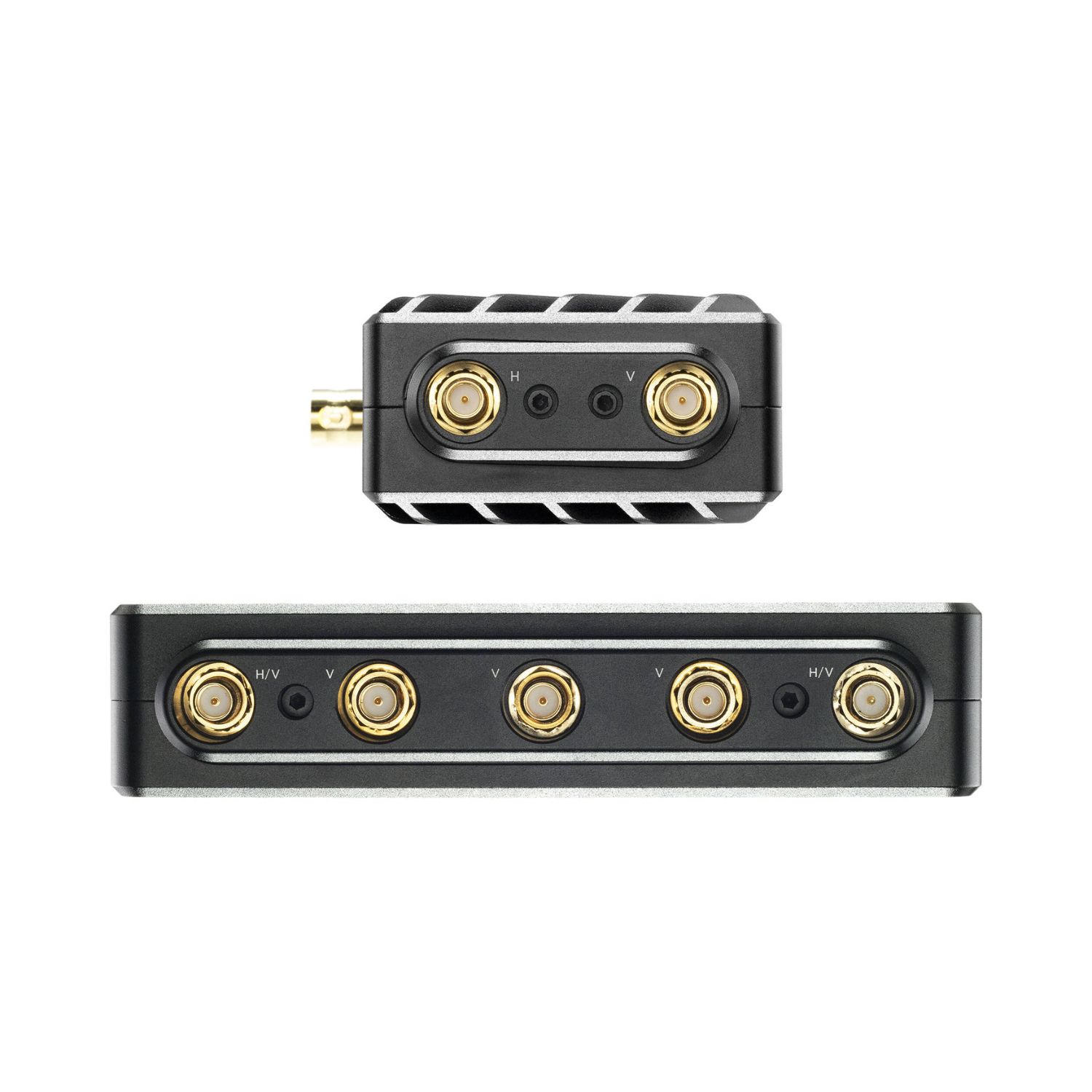

  Antennas
  2 External 2dBi antennas (included)
  Wireless
  Non-DFS Frequencies:
  5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
  DFS Frequencies:
  5.270 ~ 5.670 GHz
  Rf Channel Selection
  Auto, Manual
  Encryption
  AES-256, RSA-1024 key exchange
  Rf Power
  23 dbm EIRP
  Range
  Up to 750 ft, line of sight
  Unicast Multicast
  Can connect one Transmitter to up to 6 Receivers
  Noise Rejection
  Can coexist with WiFi and 5GHz cordless phones
  Can operate up to 6 sets in same location
  Interoperability
  Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
• Power
  Power Input
  2-Pin Circular locking Connector 6-28 VDC
  Battery
  None, optional Sony/Canon dual battery plate
  Nominal Power Consumption
  9 Watts
• Environmental
  Operating Temperature
  0-40℃

Bolt 6 LT 750 RX

• Video
  Video Outputs
  3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
  1 x HDMI 1.4b Type-A receptacle
  Sdi Ancillary Data Support
  Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
  Color Sampling
  SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
  Output Video Scaling
  No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output
• Supported Resolutions –
  4Kp23.98/24/25/29.97/30 (HDMI only)
  1080p23.98/24/25/29.97/30/50/59.94/60
  1080psf23.98/24/25/29.97/30
  1080i50/59.94/60
  720p50/59.94/60
  480p59.94 576p50
  480i(NTSC)/576i(PAL)
• Video Processing
  Video Compression
  Visually Lossless
  Test Pattern Generator Support
  Yes
  Spectrum Analyzer
  Yes
  Color Correction
  17x17x17 3D LUT (supports 10-bit color)
• Audio Processing
  Audio Compression
  48kHz 24-bit PCM
• Outputs
  Audio Output
  Embedded SDI/HDMI Audio Output (2 Channel)
• Physical
  Dimensions
  122mm x 94mm x 27mm
  Weight
  292g (10.3oz)
  Construction
  Milled Aluminum(Chassis) and regulation-compliant PCB
  Mountability
  Multiple mounting options with 1/4″x20 and 3/8″x16 holes
• Interfaces
  Configuration Interfaces
  OSD with Menu, Joystick Navigation
  Switches
  On/Off Switch
  Mobile App
  Bolt App
  Desktop App
  Bolt Manager application for OSX & Windows
  Usb Interface Functionality
  Upgrade via Micro-USB
  Bluetooth
  2.4 GHz
• Network
  Antennas
  5 External 2 dBi antennas (included)
  Wireless
  Non-DFS Frequencies:
  5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
  DFS Frequencies:
  5.270 ~ 5.670 GHz
  Rf Channel Selection
  Auto, Manual
  Encryption
  AES-256, RSA-1024 key exchange
  Rf Power
  21 dbm EIRP
  Range
  Up to 750 ft, line of sight
  Unicast Multicast
  Can connect one Transmitter to up to 6 Receivers
  Noise Rejection
  Can coexist with WiFi and 5GHz cordless phones
  Can operate up to 6 sets in same location
  Interoperability
  Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
• Power
  Power Input
  2-Pin Circular locking Connector 6-28 VDC
  Battery
  None, optional Gold or V mount battery plate
  Nominal Power Consumption
  11 Watts
• Environmental
  Operating Temperature
  0-40℃

In The Box

• 1 x Bolt 6 LT 750 TX
• 1 x Bolt 6 LT 750 RX
• 1 x Lightstand Adapter ¼-20in
• 1 x Hot Shoe Adaptor
• 1 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
• 2 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in/46cm Cable
• 2 x SDI – BNC to BNC Cable, 10in
• 1 x PSU 2pin Conn. to 18W AC Adapter (Int) – 6ft Cable
• 1 x Teradek Case Large – Bolt 6 LT TX/2RX
• 1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable
