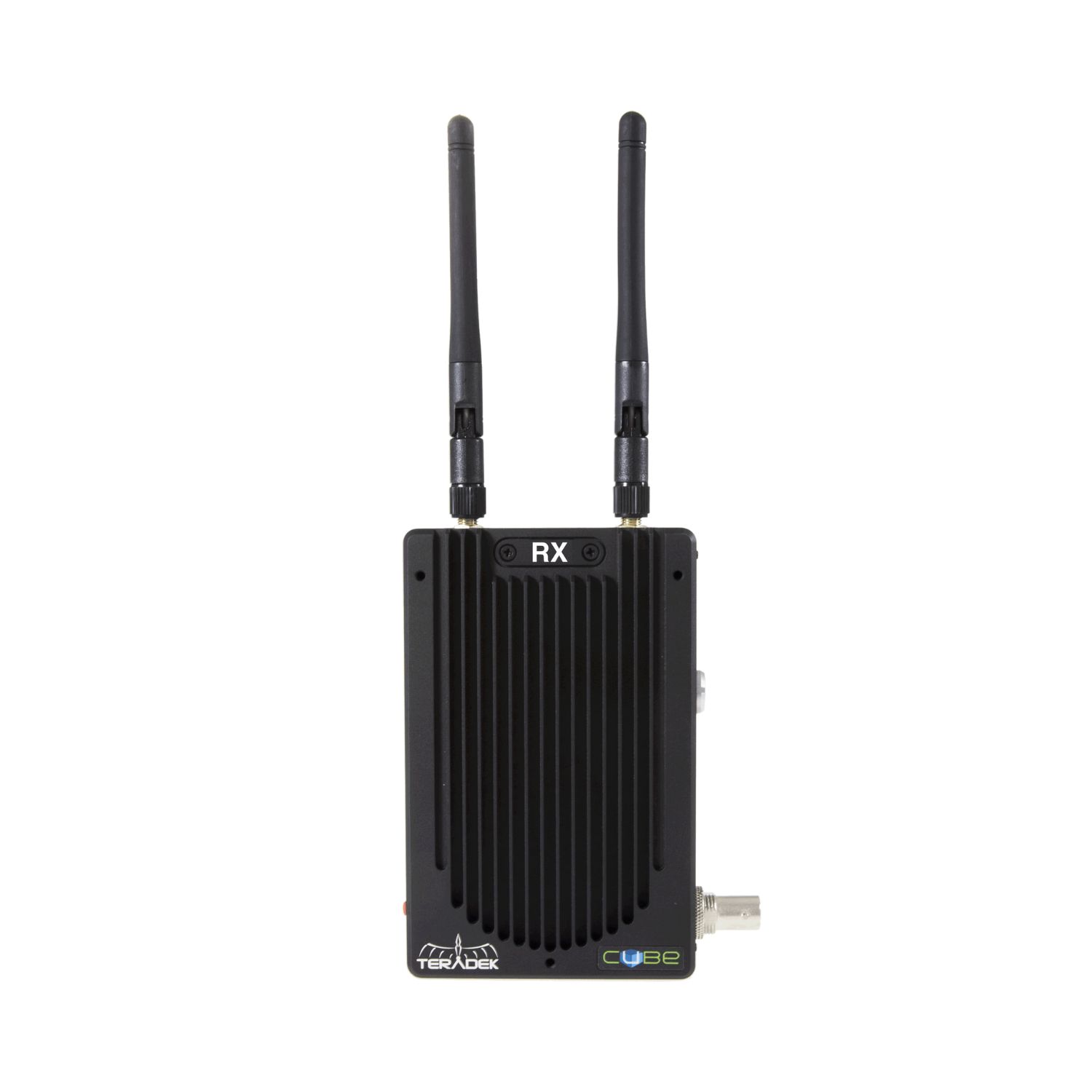

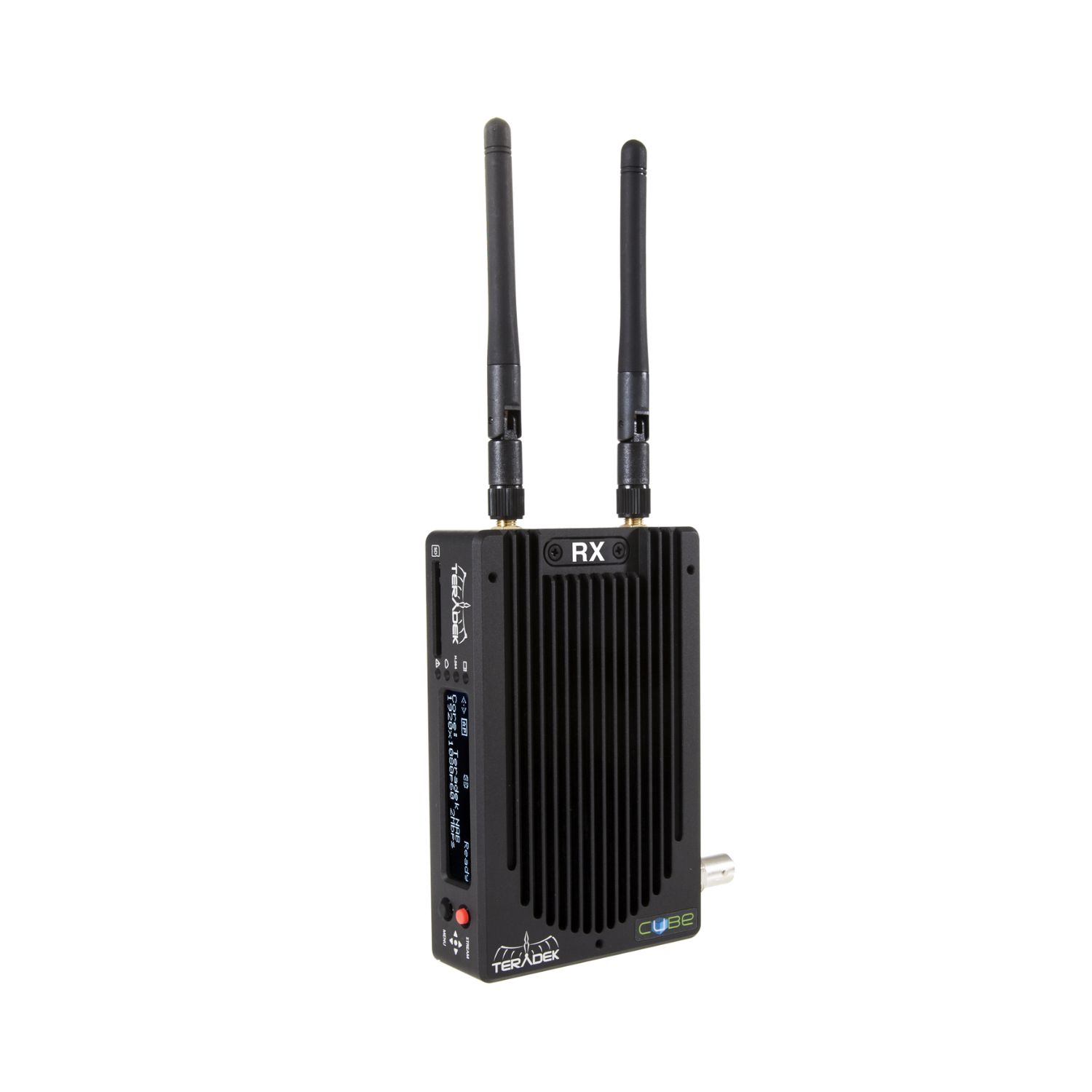

Teradek Cube 775 – HEVC/AVC (H.265/H.264) SDI/HDMI GbE WiFi Decoder

Teradek Cube 775 – HEVC/AVC (H.265/H.264) SDI/HDMI GbE WiFi Decoder

Cube 775 is the latest in Teradek’s line of professional, scalable integrated decoders designed for video over IP delivery. Compatible with Cube encoders, Cube 775 offers SD/HD MPEG-4 AVC/HEVC (H.264/H.265) decoding for point-to-point video distribution, allowing content creators, broadcasters and system integrators to cost-effectively and reliably meet strict QoS requirements.

With flexible HDMI/3G-SDI dual-output and Ethernet/WiFi (2.4/5Ghz)/cellular USB connection options, Cube 775 streamlines IP video deployment in existing workflows and enhances infrastructure for all users. Small form factor and high-performance decoding make it one of the most versatile solutions for content delivery strategies in the video ecosystem.

Specifications

• Video

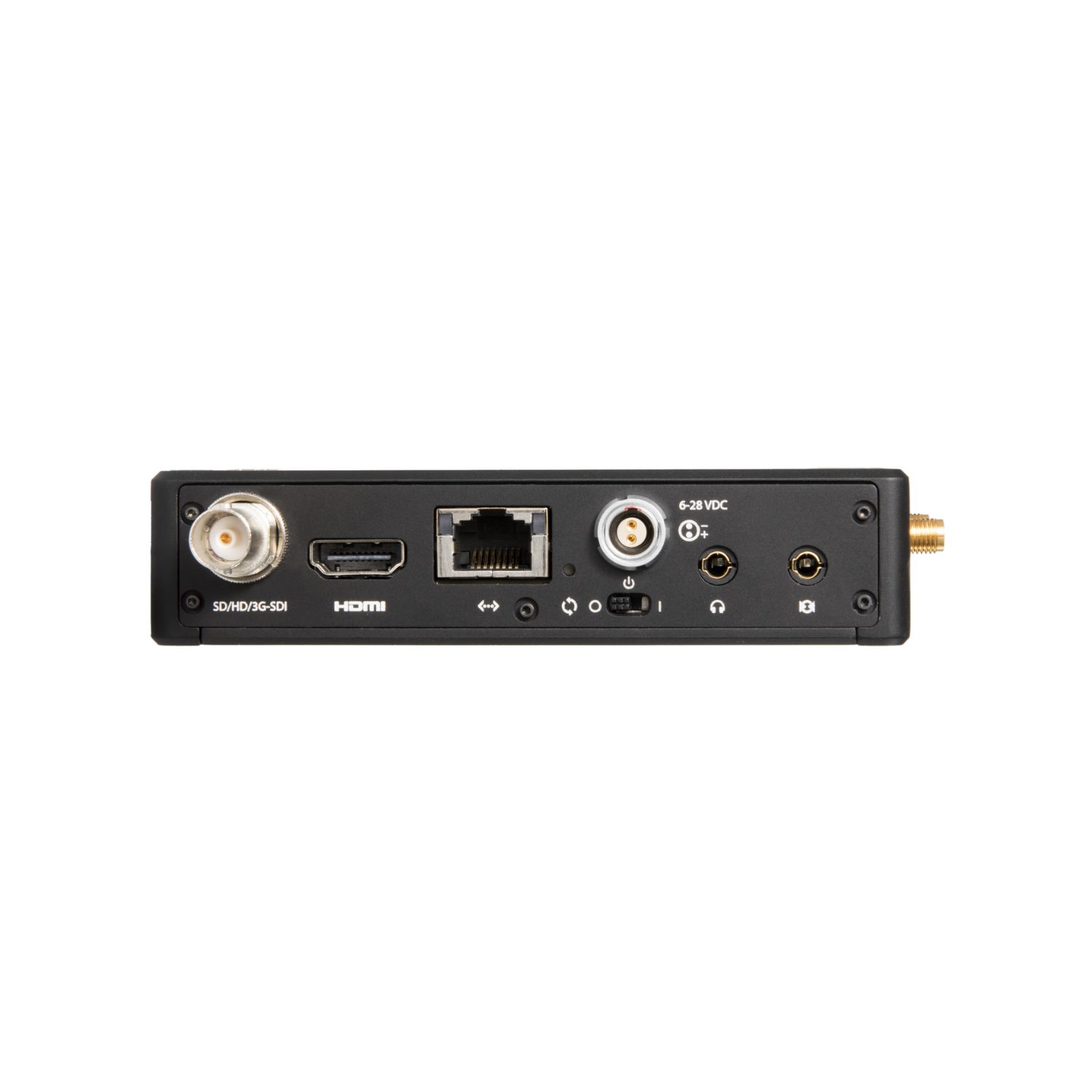

  Video Outputs
  HDMI 1.4a: Full Size
  SD/HD/3G-SDI (75 Ω BNC)
• Supported Resolutions
  1080p 24/25/29.97/30/50/59.94/60*
  1080i 50/59.94/60
  1080PsF 23/24/25/29/30
  720p 50/59.94/60
  576i
  480i
  480p (for HDMI output only)
  576p (for HDMI output only)
• Video Processing
  Video Compression
  Decompresses HEVC (H.265), H.264, Baseline, Main and High Profile
  Supported Video Bitrate
  250 Kbps to 15 Mbps*
  *15 Mbps (wired), 10 Mbps (WiFi)
  Test Pattern Generator Support
  None
  Video Format Conversion Support
  Built in Video Scaler and Deinterlacer
  Color Correction
  None
• Protocol Support
  Network Protocols
  TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP,NDI
  Supported Video Transport Protocols
  RTP/RTSP: Unicast/TCP, Unicast/UDP, Multicast/UDP streams
  MPEG Transport Stream: Unicast/TCP (pushed in from an external source, or pulled down from a remote server such as Core), Unicast/UDP, Multicast/UDP
  Teradek Streaming : Unicast/UDP, Multicast/UDP
  Remote Control
  Teradek Core
• Audio Processing
  Audio Compression
  AAC-LC, MPEG Layer 2
• Inputs
  Audio Input
  Embedded Audio Input
  Analog Line or Mic in, adjustable gain
• Outputs
  Audio Output
  Headphone output, adjustable volume
• Physical
  Dimensions
  4.75″W x 3″D x 1.1″H [120.7 x 76.2 x 27.9mm]
  Weight
  11.6oz [328.9g]
  Construction
  Milled Aluminum
• Interfaces
  Http
  WebUI for Configuration and Control
  Configuration Interfaces

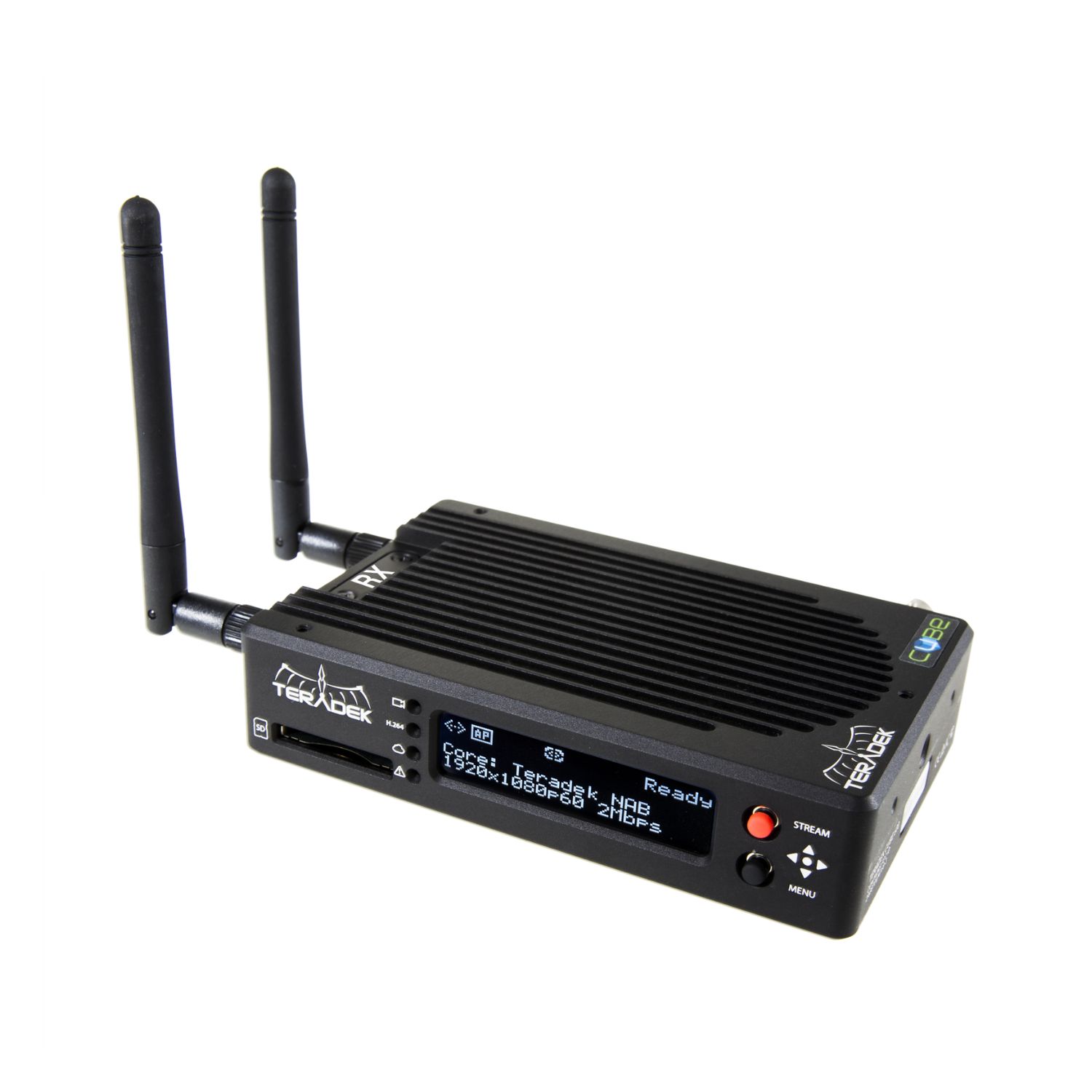

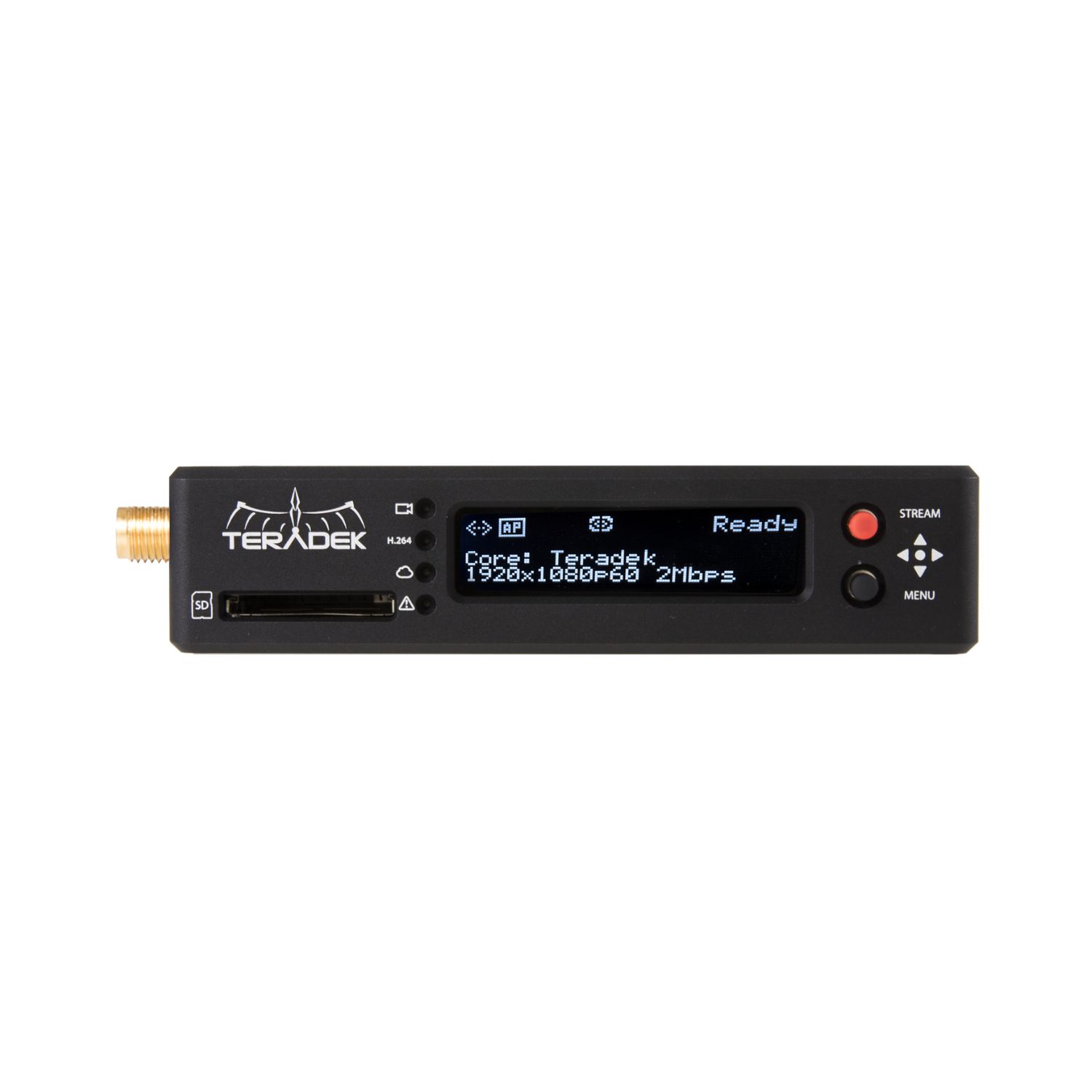

  OLED Display with joystick Navigation buttons
  Feature-rich WebUI for configuration and control
  Switches
  On/Off and Reset Switch
  Mobile App
  Vuer, Live:Air
  Usb Interface Functionality

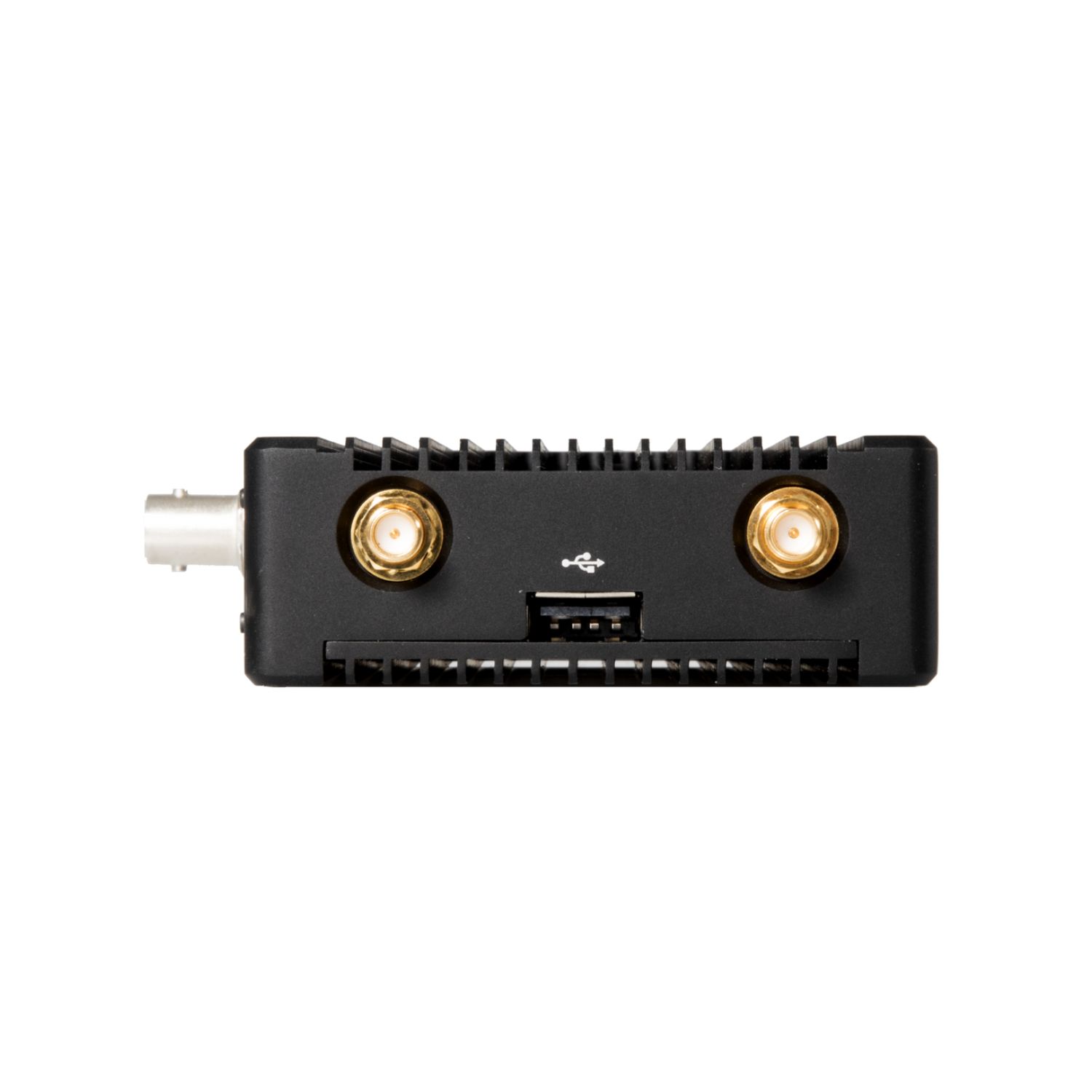

  Powered USB 2.0 host port
• Network
  Ethernet
  10/100BASE-T
  Wireless
  WiFi: 2.4/5GHz 802.11 a/b/g/n MiMo
  Usb
  None
  Rf Channel Selection
  Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only)
  Configurable to specific channels
  Encryption
  802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES
• Power
  Power Input
  2 Pin Connector Power input
  Battery
  No Battery Included
  Nominal Power Consumption
  8W, 7W (no WiFi)
  Auxilary Power Input
  6-28V DC
• Environmental
  Operating Temperature
  0 – 50 C

In The Box

• 1 x Cube 775
• 1 x Ethernet Cable
• 1 x HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in Cable
• 1 x SDI – BNC to BNC Cable, 10in
• 1 x PSU 2pin Conn to 18W AC Adapter (Int) – 6ft
